Removing and installing power window motor in front door - AR72.29-P-1860K

MODEL 208

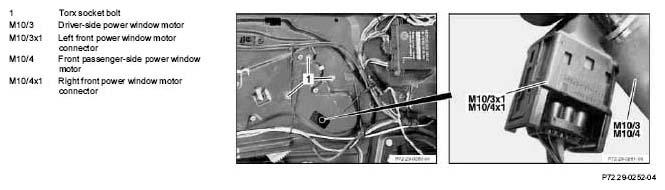

Fig 1: Identifying Front Door Power Window Motor Remove/Install Components

	Removal, installation
1	Remove door liner on front door		AR72.10-P-1000K
2	Partially pull foil off of door liner	Until Torx socket bolt (1) is visible
3	Disconnect left front power window motor connector (M10/3x1) or right front power window motor connector (M10/4x1) from driver-side power window motor (M10/3) or front passengerside power window motor (M10/4).
4	Unscrew Torx socket bolts (1)	Secure motor so that it does not fall
			Fig 2
			Fig 3
			*BA72.29-P-1001-01A
5	Remove driver-side power window motor (M10/3) or front passenger-side power window motor (M10/4) from door	Before installing grease gear on motor lightly Installation:  When installing observe hole pattern for mounting
6	Reinstall in opposite order

ELECTRIC SYSTEM SIDE DOORS

Number	Designation		Model 208
BA72.29-P-1001-01A	Screw for power window motor in front door	Nm	13

Fig 2: Identifying Torque Wrench (000 589 67 21 00)

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
