Removing and installing lower control panel control module - AR72.29-P-0200K

MODEL 208

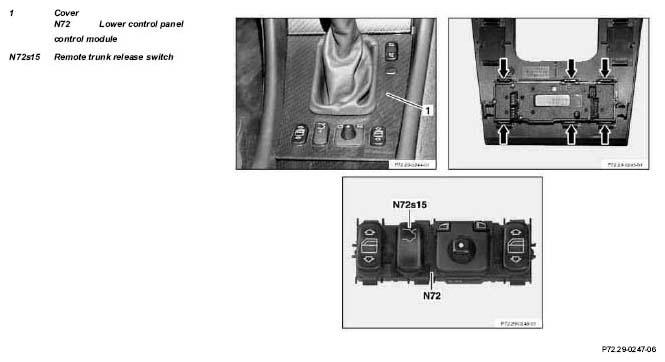

Fig 1: Identifying Lower Control Panel Control Module Remove/Install Components

	Removal, installation
1	Remove cover (1)
2	Disconnect electrical connectors
3	Unclip lower control panel control module (N72) (arrows)	Installation:  Ensure that module catches properly
4	Reinstall in opposite order
