Remove and install front door crank window - AR72.10-P-1900K

MODEL 208

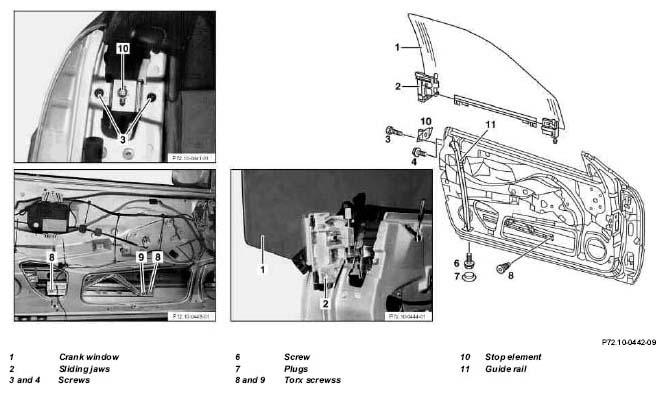

Fig 1: Identifying Front Door Crank Window Remove/Install Components

	Remove/install
1	Remove door liner		AR72.10-P-1000K
2	Remove outer sealing rail		AR72.10-P-1700K
3	Remove inner sealing rail		AR72.10-P-1600G
4	Remove door loudspeaker
5	Pull off door foil on inner door panel	Installation:  Replace damaged door foil, glue door foil to inner door panel	*BR00.45-Z-1004-02A
6	Remove plug (7)
7	Unscrew screws (4 and 6)	Mark installation position of guide rail (11) Crank window (1) must be closed.
8	Remove guide rail (11) through assembly opening
9	Open crank window (1) until Torx screws (8 and 9) are visible
10	Remove stop element (10)
11	Unscrew Torx screws (8)
12	Remove crank window (1) upward, move sliding jaws (2) through rear opening in door shaft	Do not scratch crank window (1) Installation:  Check crank window adjustment (1), if necessary ↓
		adjust crank window (1)	AR72.10-P-1950K
		Lubricate sliding jaws (2) and guide rail (11) with multi-purpose paste	*BR00.45-Z-1009-06A
13	Lay crank window (1) down on safe subsurface
14	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1004-02A	Adhesives	A 001 989 30 71
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
