Removing and installing soft top compartment cover opened limit switch - AR77.39-P-3710KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

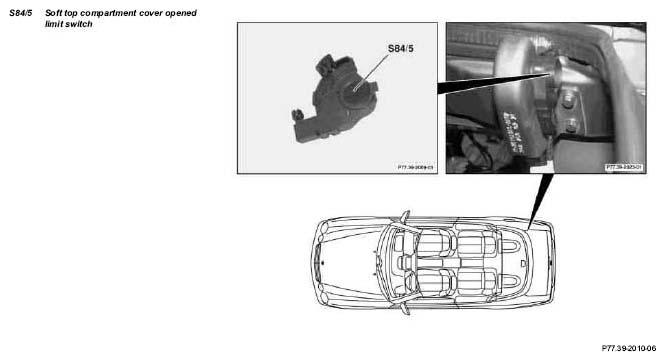

Fig 1: Identifying Soft Top Compartment Cover Opened Limit Switch Remove/Install Components
G04729553
Fig. item, etc. Work instructions
IMPORTANT Removing and installing paneling in trunk on soft top compartment cover
S84/5 Removing and installing soft top compartment cover opened limit switch IMPORTANT Unclip housing with limit switch from mount, disconnect soft top compartment cover opened limit switch connector (S84/5x1)
