Removal |
|
|
| 1 |

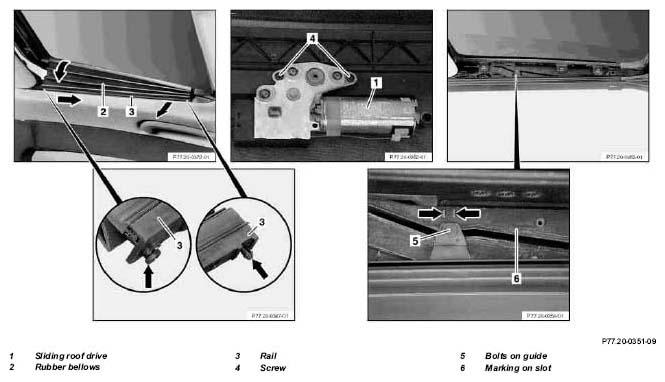

Close sliding roof from sliding position and push lining toward rear |
|
|
| 2 |
Remove overhead control panel control module and disconnect electrical connector for sliding roof drive (1) |
|
AR82.20-P-1000K |
| 3 |
Unscrew screws (4) and remove sliding roof drive |
|
|
| 4 |
Unhook rubber bellows (2) on sliding/pop-up roof panel |
|
|
| 5 |
Remove rail (3) in direction of arrow |
First unclip rail at front. |
|
 |
Installation |
|
|
| 6 |
Check position of markings (arrows) on slot (6), if necessary adjust guide (5) until markings (arrows) coincide with guide (5) |
|
|
| 7 |
Install sliding roof drive (1) |
|
*BA77.20-P-1002-01A |
| 8 |
Connect electrical connector for sliding roof drive (1) to overhead control panel control module and install overhead control panel |
|
AR82.20-P-1000K |
| 9 |
Synchronize sliding/pop-up roof |
|
GF77.20-P-3002A |
| 10 |
Check sliding/pop-up roof for proper function |
|
|
| 11 |
Install rubber bellows (2) and rail (3) |
|
|
