Removing and installing spectacles or cassette compartment - AR68.20-P-2450K

MODEL 208

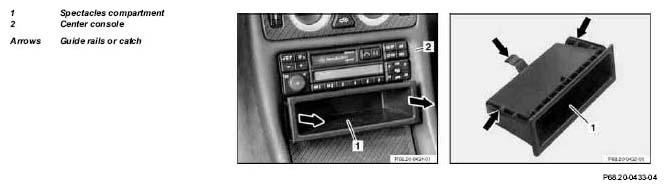

Fig 1: Identifying Spectacles Or Cassette Compartment Remove/Install Components
G04729446
REMOVING Removal
1 Pull out stowage compartment (1) toward rear
INSTALLING Installation
2 Insert spectacles compartment (1) into center console (2) with lateral guide rails (arrows) and push in until catch (arrow) engages
