Removing and installing soft top paneling - AR68.30-P-4320KA

MODEL 208.448 /444 /470 /445 /435 /447 /465

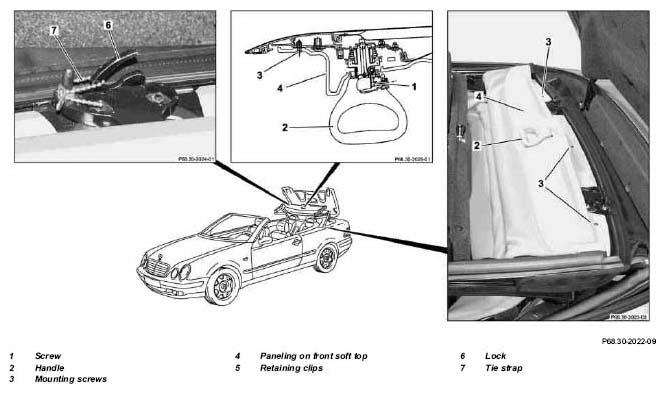

Fig 1: Identifying Soft Top Paneling Remove/Install Components - Model 208.448 /444 /470 /445 /435 /447 /465

	Removing, installing
1	Open soft top	Lay soft top down in soft top compartment, do not close soft top compartment cover
2	Turn handle (2) on central lock to stop	Secure lock (6) in end position with suitable cable strap (7)
2	Unscrew screw (1) in handle (2)		*BA77.33-P-1002-01C
			Fig 2
3	Unscrew mounting screws (3)
4	Unclip paneling from front soft top (4) upward	Installation  : Check mounting clips (5), if necessary replace.
5	Install in the reverse order

SOFT TOP-MECHANICAL SYSTEM

Number	Designation		Model 208.4
BA77.33-P-1002-01C	Screw for handle on pivot bearing	Nm	3

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
