Removing and installing side paneling in rear - AR68.30-P-4780KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

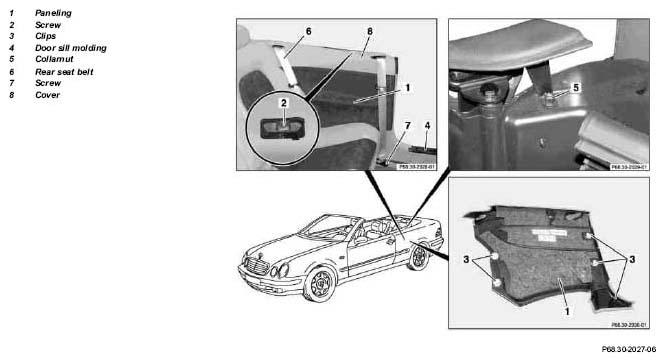

Fig 1: Identifying Side Paneling In Rear Remove/Install Components - Model 208.435 /444 /445 /447 /448 /465 /470

	Removing, installing
1	Open soft top	Lay soft top down in soft top compartment, do not close soft top compartment cover
2	Remove rear seat and rear backrest		AR91.12-P-1700KA
3	Remove door sill molding (4)
4	Unscrew screws from belt end fitting for rear seat belt (6)		*BA91.40-P-1001-01A
5	Unscrew screw (7) from bottom sliding rail for seat belt		*BA91.40-P-1001-01A
6	Unscrew screw (2)	For this purpose unclip cover (8) from rear paneling
7	Unscrew collar nut (5)
8	Unclip paneling (1) in area of B-pillar	Three clips are located in the area of the B-pillar.
9	Pull paneling (1) out of window shaft seal and from welding bolt in area of rear seat backrest	Installation:  Check mounting clips (3), replace if necessary
10	Pull belts out of paneling (1)	Installation:  Ensure that seat belts are installed properly
11	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4
BA91.40-P-1001-01A	Belt end fitting screw	Nm	35	35
