Removing and installing glove compartment - AR68.10-P-1400K

MODEL 208

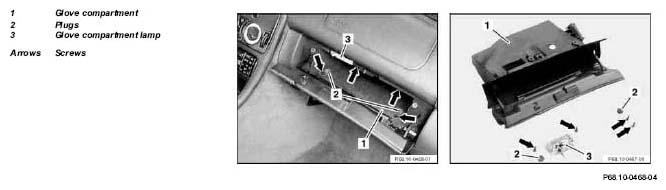

Fig 1: Identifying Glove Compartment Remove/Install Components

	Removal, installation
1	Open glove compartment lid
2	Unscrew plugs (2)
3	Unclip glove compartment lamp (3) and disconnect connector
4	Unscrew screws (4 each, arrows)
5	Pull out glove compartment (1) and put down	When installing pull wire for glove compartment lamp through
6	Reinstall in opposite order
