Adjusting glove compartment lid - AR68.10-P-1300K
MODEL 208
| Adjustment | |||

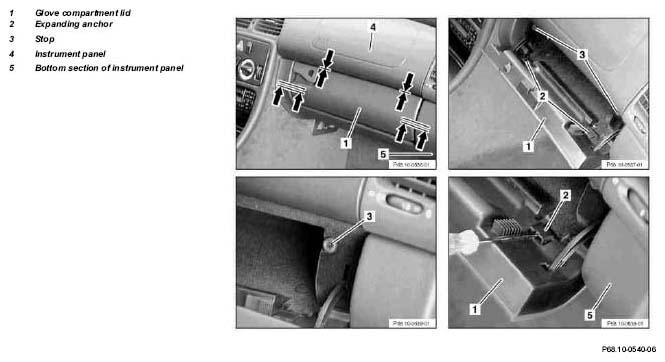

| During entire procedure pay attention to uniform transition and gap width (arrows) between glove compartment lid (1) and instrument panel (4) as well as bottom section of instrument panel (5) | |||
| 1 | Open glove compartment lid (1) | ||
| 2 | Pull out expanding anchor (2) | ||
| 3 | Close glove compartment lid (1) and adjust to obtain uniform horizontal gap (arrows) between glove compartment lid and instrument panel (4) | ||
| 4 | Carefully open glove compartment lid (1) and press in expanding anchor (2) | ||
| 5 | Adjust lateral transition (contour) of glove compartment lid (1) to bottom section of instrument panel (4) with stop (3) by screwing stop (3) in or out | ||
| 6 | Check for easy motion and proper function |
