Removing, disassembling, assembling and installing radiator cover - AR88.40-P-4000K

MODEL 208.3 /4

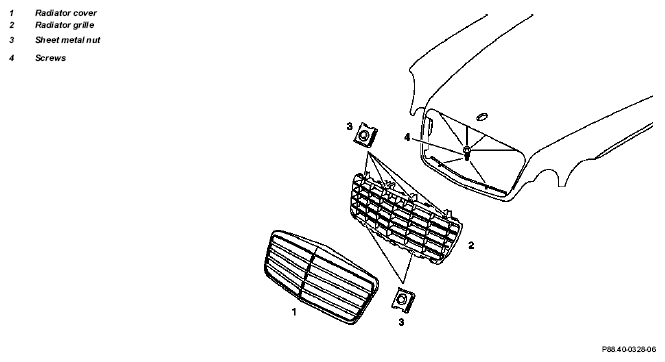

Fig 1: Identifying Radiator Cover Remove/Install & Disassemble/Assemble Components

	Removal
	Risk of injury  from fingers being pinched or jammed  when removing and installing and aligning hoods, doors, trunk lids/tailgates and sliding roof	When moving components ensure that no body parts or limbs are in the area of motion.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000F
2	Unscrew inner screws (4) on radiator cover (1)
3	Remove radiator cover toward front	Avoid damaging paint.
4	Put radiator cover down on suitable surface	Avoid damaging chrome on cover and moldings.
	Disassembly, assembly
5	Unclip radiator grille (2) from radiator cover (1)	Installation wedge	Fig 2
6	Clip radiator grille (2) into radiator cover (1)
	Installation
7	Insert radiator cover (1) from front and simultaneously insert handle or safety hook	Avoid damaging paint. Check handle and safety hook for proper function.
8	Screw in screws (2) (6 each) and tighten
9	Check that engine hood and safety hook catch properly
10	Close engine hood		AR88.40-P-1000F

Fig 2: Identifying Installation Wedge (110 589 03 59 00)
