Removing and installing sealing channel on roof frame - AR88.85-P-2000KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

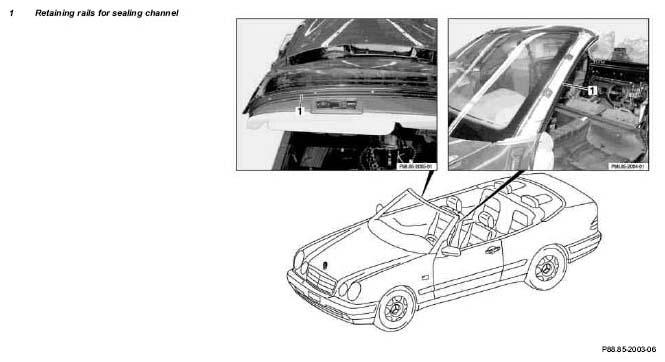

Fig 1: Identifying Sealing Channel On Roof Frame Remove/Install Components - Model 208.435 /444 /445 /447 /448 /465 /470

	Removal, installation
1	Remove paneling from outer A-pillar	Left and right side of vehicle	AR88.80-P-8500K
2	Pull sealing channel out of retaining rails (1) on both A-pillars and on roof frame	Installation:  First align sealing channels at corners of roof frame, then press into retaining rails. Use lubricant	*BR00.45-Z-1010-06A
3	Install in the reverse sequence

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
