Removing and installing transmitter and receiver unit of infrared interior motion sensor - AR80.50-P-9820K
MODEL 208 with CODE (882a) Interior motion sensor (infrared)

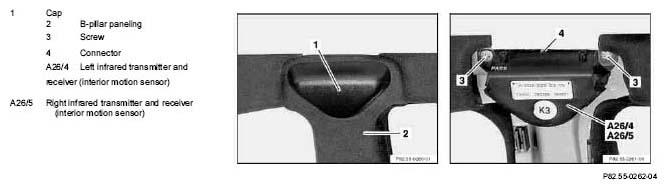

Fig 1: Identifying Transmitter And Receiver Unit Of Infrared Interior Motion Sensor Remove/Install Components
| Removal, installation | |||
| 1 | Press off cap (1) | ||
| 2 | Remove paneling on B-pillar (2) | AR68.30-P-4700K | |
| 3 | Unscrew screw (3) on transmitter and receiver (A26/4, A26/5) | ||
| 4 | Disconnect connector (4) | ||
| 5 | Remove infrared transmitter and receiver (A26/4, A26/5) | ||
| 6 | Install in opposite order |
