Removing and installing tilt sensor (anti-towing sensor) - AR80.50-P-0001K
MODEL 208 with CODE (882a) Interior protection system (infrared)
| Removal, installation | |||
| 1 | Remove mat in trunk | ||

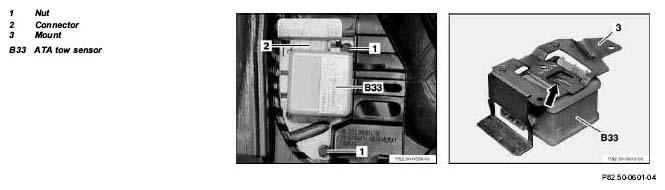

| 2 | Disconnect connector (2) from ATA tow sensor (B33) | ||
| 3 | Remove ATA tow sensor (B33) together with mount (3) | (see Diagnosis Manual, Body). |
|
| 4 | Bend tongue (arrow) on mount (3) up | ||
| 5 | Pull ATA tow sensor (B33) off of mount (3) | ||
| 6 | Reinstall in opposite order |
