Removing and installing central locking interior control switch - AR80.20-P-2650K
MODEL 208

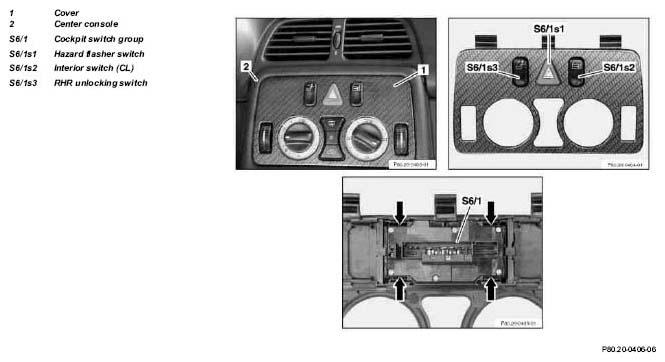

| The hazard flasher switch (S6/1s1), the interior switch (CL) (S6/1s2) and RHR unlocking switch (S/1s3) are consolidated into one unit in the cockpit switch group (S6/1). | The cockpit switch group (S6/1) can only be replaced as a complete unit. | ||
| Removal, installation | |||
| 1 | Pull cover (1) back at bottom and remove from center console housing (2) at top | ||
| 2 | Disconnect electrical connectors from cockpit switch group (S6/1) | ||
| 3 | Unclip cockpit switch group (S6/1) (4 catch lugs, arrows) and remove from cover (1) | ||
| 4 | Reinstall in opposite order |
