Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474N

MODEL 208.4

GPS antenna on soft top compartment cover

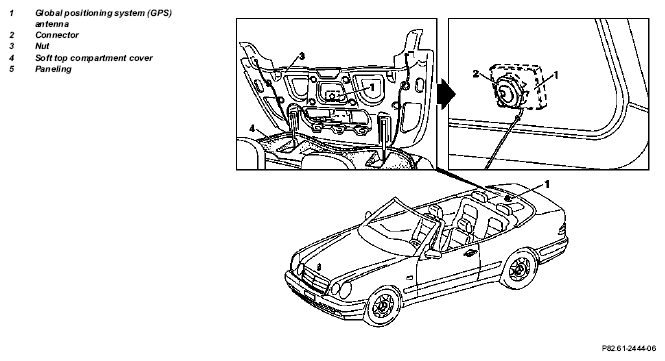

Fig 1: Identifying Antenna For Global Positioning System (GPS) On Vehicles With APS Remove/Install Components - GPS Antenna On Soft Top Compartment Cover

	Removal, installation
1	Extend roof mechanism until soft top is closed and the soft top compartment cover (4) is upright
2	Remove paneling (5) from soft top compartment
3	Disconnect antenna lead from global positioning system (GPS) antenna (1)
4	Unscrew nut (3) and remove global positioning system (GPS) antenna (1)
5	Install in opposite order
