Removing and installing fuel rail with injectors (ME-SFI) - AR07.03-P-1451F
ENGINE 120.982 /983
| Removal, installation | |||
| Explosion hazard | Observe accident prevention regulations! | ||
| 1 | Release fuel pressure in fuel distributor with service valve | See Diagnosis Manual, Engine, Volume 2, Index 3.2 |

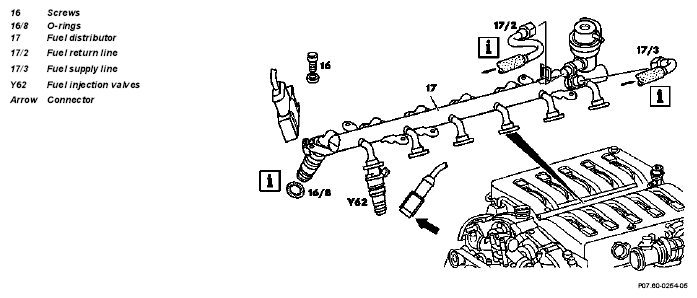

Figure |
| Figure | |||
| 2 | Partially remove cable duct on bulkhead | Model 140 For this purpose: ↓ Remove air collection housing, reinstall. See Repair instructions for automatic heater, model 140, Operation no. 83-140 |
|
| 3 | Disconnect vacuum line from automatic transmission at intake manifold | Model 140 | |
| 4 | Remove mounting straps for all electrical leads leading over fuel distributor | ||
| 5 | Disconnect vacuum hose from diaphragm pressure regulator | ||
| 6 | Unscrew fuel supply (17/3) and return lines (17/2 | ||
| 7 | Disconnect connectors (arrow) | ||
| 8 | Unscrew screws (16) | ||
| 9 | Disconnect vacuum line from automatic transmission at intake manifold | ||
| 10 | Reinstall in opposite order | ||
| Testing | |||
| 11 | Test injection valves (Y62) | See Diagnosis Manual, Engine, Volume 2, Index 3.2 | |
| 12 | Remove and install injection valves | AR07.03-P-6520F |
