Checking caster, assigning to tabular value - AR40.20-P-0322-03B

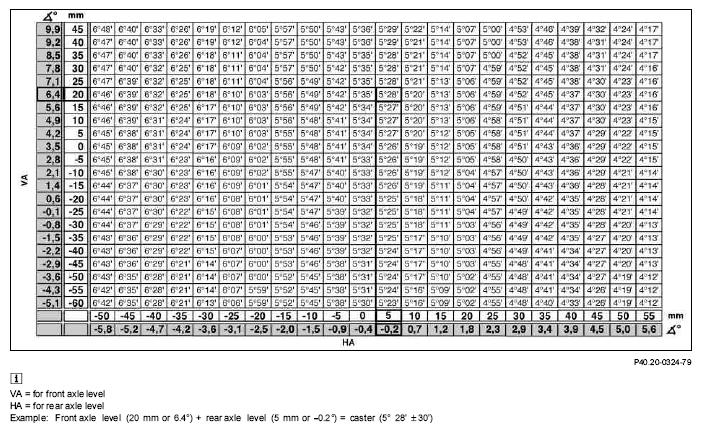

- Measure front and rear axle levels and read off the caster value for the front axle (measured with wheels turned 20°) from the chart, tolerance ± 30', max. difference left to right 30'.
