Checking camber, assigning table value - AR40.20-P-0322-03A
Model 202, 208

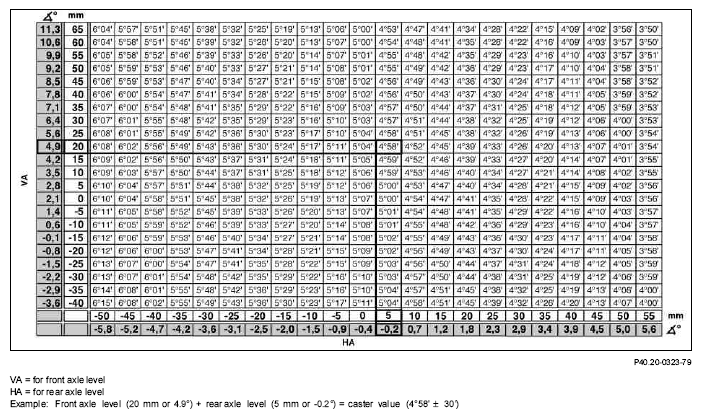

Measure front and rear axle level and obtain the front axle caster value (measured with wheels turned 20°) from the table, tolerance ± 30', max. difference between left and right 30'.
