Check and adjust camber and caster at front axle - AR40.20-P-0322E

MODEL 210.081 /082 /083 /281 /282 /283

Camber

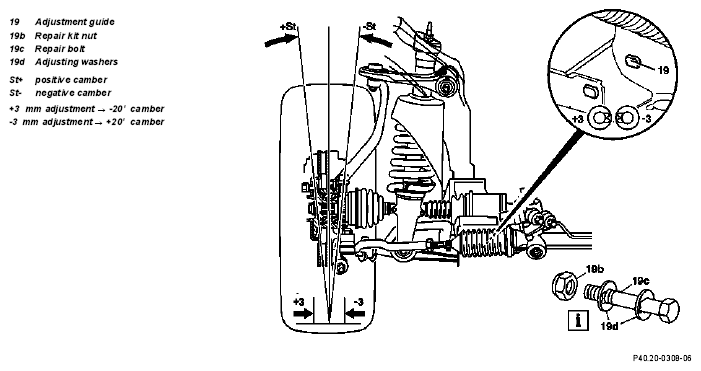

Fig 1: Identifying Camber Front Axle - Model 210.081 /082 /083 /281 /282 /283

Caster

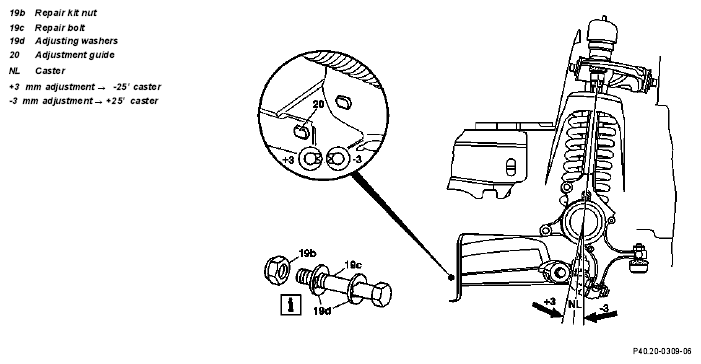

Fig 2: Identifying Caster Front Axle - Model 210.081 /082 /083 /281 /282 /283

Modification notes

10.9.03

Reference to adjusting toe-in at the front and rear axle replaced by reference to chassis alignment

Step 9

	Check
1	Observe general information on chassis alignment		AR40.20-P-0201A
2	Check vehicle level at front and rear axles with electronic inclinometer		AR40.20-P-0301D
3	Check camber and assign tabular value		AR40.20-P-0322-02D
4	Check caster and assign tabular value	Measurement with wheels turned 20°.	AR40.20-P-0322-03E
	Adjust
5	Raise vehicle.
6	Install adjusting washers (19d)	Screw on nut (19b) of repair kit until it abuts, but do not tighten yet, so that the rubber mount of the transverse control arm can twist when the vehicle is rocked to settle the suspension.	AR40.20-P-0322-04A
7	Check the vehicle level at the front axle again after the camber and caster adjustment	The vehicle level must match the dimension established during the initial measurement.	AR40.20-P-0301D
8	Tighten nut (19b) of the repair kit	Installation: The repair bolt (19c) should be counterhold when tightening the nut (19b) of the repair kit. Check the installation position of the adjusting washers (19d) again.
			*BA40.20-P-1005-01A
9	Check toe-in at front and rear axle and adjust if necessary.	See ↓
		Perform chassis alignment check	AR40.20-P-0200A

Chassis alignment

Number	Designation		Model 210
BA40.20-P-1005-01A	Nut, repair kit	Nm	110
