Removing and installing airbag/emergency tensioning retractor control module - AR91.60-P-0622E

MODEL 202

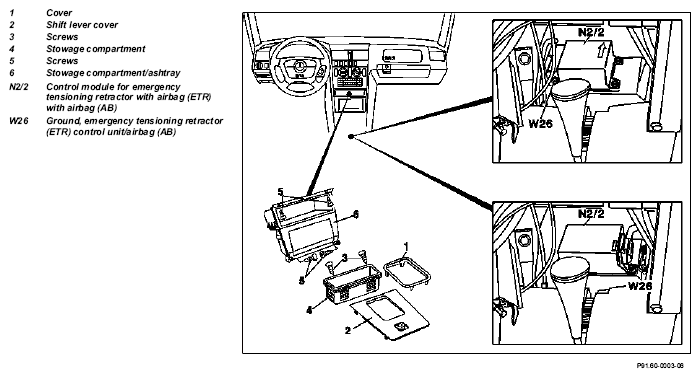

Fig 1: Identifying Airbag/Emergency Tensioning Retractor Control Module Remove/Install Components - Model 202

	Removal, installation
	Important notes for performing repair, body and welding work on vehicles with airbags and emergency tensioning retractors	Models 124, 129 up to 30.6.93, 140, 202 up to 30.6.93	AH91.00-P-0002-01A
		Model 129 as 1.7.93, 163, 168, 170, 202 as 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1.1	Disconnect ground lead on battery	Model 202 up to 30 June 93	AR54.10-P-0003A
1.2	Remove ignition key	Model 202 as of 1 July 93
2	Disconnect test connector/connector for airbag with emergency tensioning retractor (X11/13)	Model 202 up to 30 June 93
3	Remove cover (1) on automatic transmission selector lever
4	Open flap on stowage compartment in center console
5	Pry out selector lever cover (2)
6	Disconnect plug on selector lever cover (2)
7	Unscrew screws (3) for stowage compartment (4) below ashtray
8	Remove stowage compartment (4)
9	Unscrew screws (5) for stowage compartment/ashtray (6)
10	Remove stowage compartment/ashtray (6)
11	Pull off plug from stowage compartment/ashtray (6)
12	Disconnect connector on control module for emergency tensioning retractor with airbag (N2/2)
13	Unscrew screws	Installation:  Ensure that ground lead is connected to ground for control module (W26)	Fig 4
14	Remove control module for emergency tensioning retractor with airbag (N2/2)	Installation:  The arrow on the housing must point towards the front of the vehicle
15	Reinstall in opposite order
16.1	Test after replacement of the control module for airbag and emergency tensioning retractor	Vehicles up to 30.06.93 except (code 498) (code 491)	AR91.60-P-0622-01EA
16.2	Program and set parameters on new control module for emergency tensioning retractor with airbag	Vehicles as of 1 July 93

Special tools

Fig 2: Identifying Pulse Counter (124 589 19 21 00)

Fig 3: Identifying Adapter For Pulse Counter (140 589 14 63 00)

Fig 4: Identifying Socket (126 589 00 10 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99
WH58.30-Z-1037-13A	Test cable (multiplexer)	651 100 40 99
