Connecting Test Equipment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Mercedes-Benz ML55, 2001 Mercedes-Benz ML430, 2001 Mercedes-Benz ML320, 2000 Mercedes-Benz ML55, and 2000 Mercedes-Benz ML430. However, it is still accessible from the selected car via links, so may be relevant.

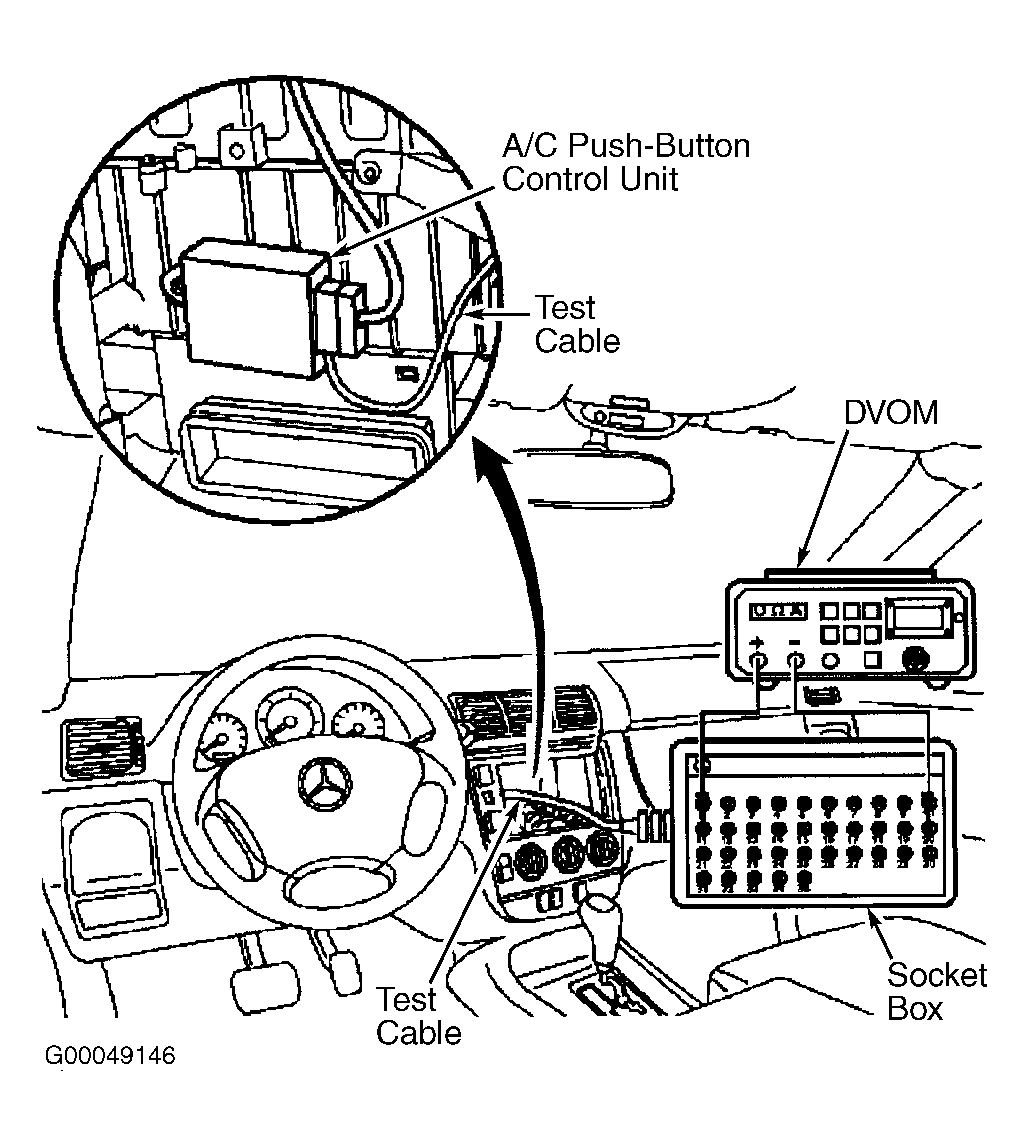

Remove radio to gain access to A/C push button control unit harness connector. Turn ignition off. Disconnect control unit harness connector. Connect socket box Test Cable (163 589 01 63 00) to A/C push button control unit and wiring harness. See Fig 1 . Connect test cable to Socket Box (124 589 00 21 00). Connect test equipment leads to socket box terminals as instructed in circuit tests.
