Mode Control Knob: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Mercedes-Benz ML55, 2001 Mercedes-Benz ML430, 2001 Mercedes-Benz ML320, 2000 Mercedes-Benz ML55, and 2000 Mercedes-Benz ML430. However, it is still accessible from the selected car via links, so may be relevant.

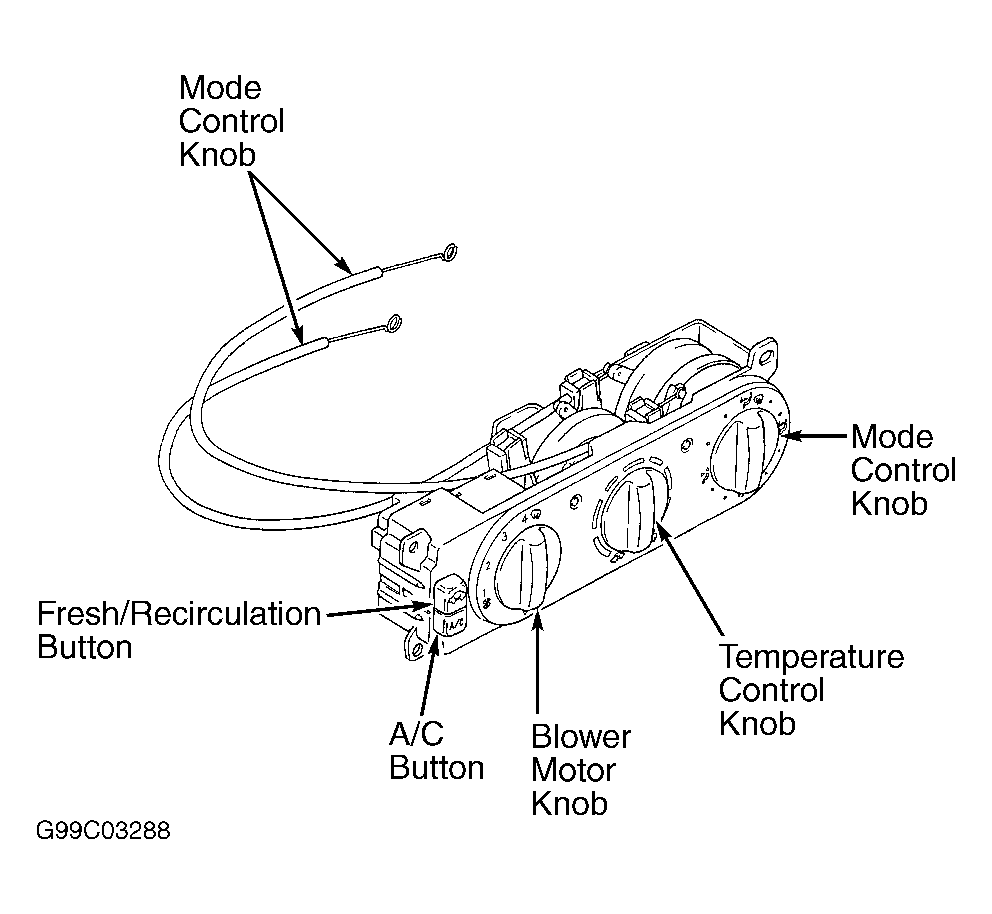

Mode control knob controls air distribution throughout the passenger compartment. Air distribution doors are controlled by cables activated by the mode control knob. See Figure . Four mode positions are available with detents in-between to adjust airflow for personal comfort.
