A/C Control Module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Mercedes-Benz ML55, 2001 Mercedes-Benz ML430, 2001 Mercedes-Benz ML320, 2000 Mercedes-Benz ML55, and 2000 Mercedes-Benz ML430. However, it is still accessible from the selected car via links, so may be relevant.

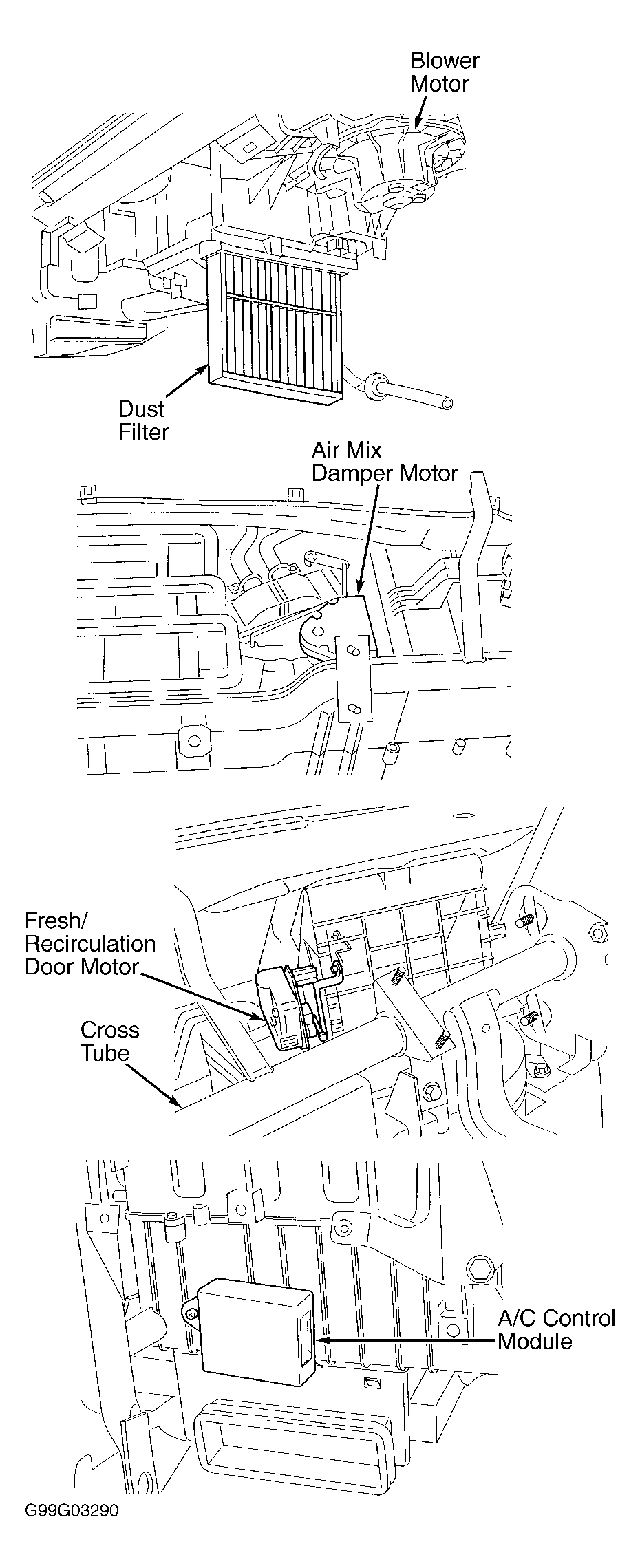

The A/C control module (A/C amplifier) is the control unit for the A/C system. See Figure . The module receives inputs from various sensors and processes the information to control various outputs for the A/C system for optimal control.
The A/C control module inputs are as follows:
- A/C Switch
- In-Vehicle Air Temperature Sensor
- Temperature Selector Knob
- Blower Motor Knob
- Evaporator Temperature Sensor
- Air Mix Damper Door Position Sensor
The A/C control module output functions are as follows:
- Air Mix Damper Door Motor
- All Activity Module
- Fresh/Recirculation Door Motor
