Removing and installing glove compartment lid - AR68.10-P-1200E

MODEL 202

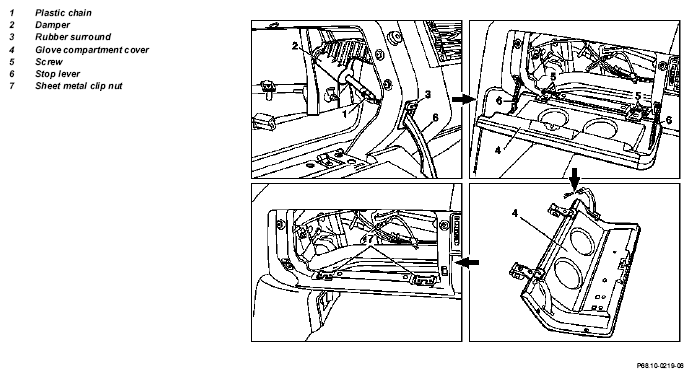

Fig 1: Identifying Glove Compartment Lid Remove/Install Components - Model 202

	Removal, installation
1	Remove glove compartment	Before installing adjust glove compartment lid and check function	AR68.10-P-1400E
2	Unhook plastic chain (1) on damper (2)
3	Unscrew screws (5, 4 each) on hinges
4	Unclip rubber surround (3) on outer stop lever (6) at instrument panel
5	Unhook stop levers (6) on left and right on instrument panel
6	Remove glove compartment lid (4)	Before installing insert sheet metal clip nuts (7) for hinges on instrument panel
7	Reinstall in opposite order
