Removing and installing cover below instrument panel (right) - AR68.10-P-1520K

MODEL 208

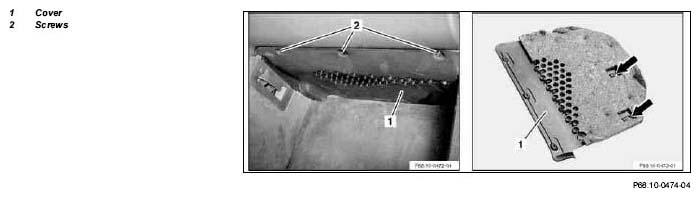

Fig 1: Identifying Right Cover Below Instrument Panel Remove/Install Components - Model 208

	Removal, installation
1	Unscrew screws (2)
2	Pull cover (1) toward rear and remove	When installing insert the two lugs (arrows) at the front of the heater housing
3	Reinstall in opposite order
