Removing and installing center console - AR68.20-P-2000E
MODEL 202
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove cover at gearshift lever | AR68.20-P-2310E | |
| 2 | Remove ashtray housing at front of center console | AR68.20-P-2400E | |
| 3.1 | Open lid above stowage compartment | Vehicles with front armrest (code 570) | |
| 4.1 | Remove carpet section in stowage tray | Vehicles without front armrest | |
| 5 | Unscrew screw (1) in stowage compartment | ||
| 6 | Unscrew screw (2) | ||

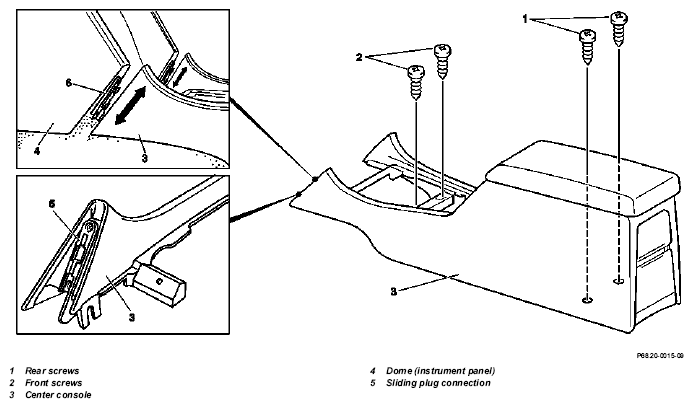

| 7 | Disconnect center console (3) at connection point to dome (4) | ||
| 8 | Remove center console (3) | When installing, attach sheet metal clip nuts onto console above propeller shaft tunnel and gearshift lever mount. Expose wiring to control switches | |
| 9 | Reinstall in opposite order |
