Removing and installing ashtray housing at front of center console - AR68.20-P-2400F

MODEL 210

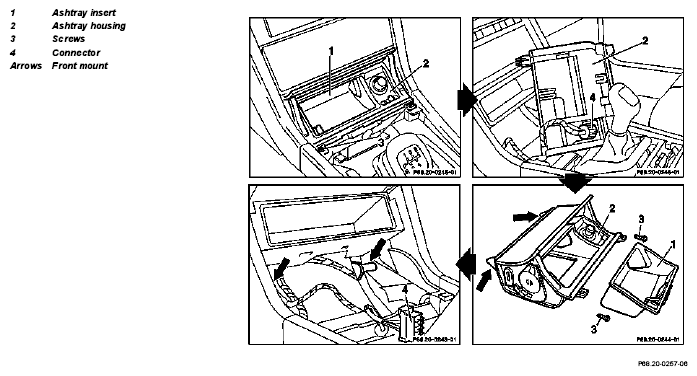

Fig 1: Identifying Ashtray Housing At Front Of Center Console Remove/Install Components - Model 210

	Removal, installation
1	Remove cover on shift lever		AR68.20-P-2310F
2	Remove ashtray insert (1)
3	Unscrew screws (3)
4	Remove ashtray housing (2) toward rear	Installation:  When installing insert front mounts (arrows) on ashtray housing (2) into left and right plastic pins (arrows)
5	Disconnect connector (4)
6	Remove ashtray housing (2)
7	Reinstall in opposite order
