Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474L
MODEL 202.07 /08 /09 /18 /19
Combined CTEL/GPS antenna or only GPS antenna on roof
Illustrated on combined CTEL/GPS antenna

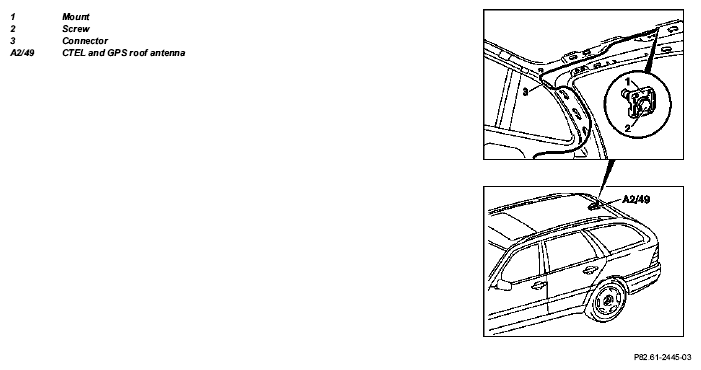

Fig 1: Identifying Antenna For Global Positioning System On Vehicles With APS Remove/Install Components - Illustrated On Combined CTEL/GPS Antenna
| Removal, installation | |||
| 1 | Remove trunk paneling on right side | ||
| 2 | Remove rear headliner | ||
| 3 | Unscrew screw (2) and remove with mount (1) | ||
| 4 | Disconnect connector (3) | ||
| 5 | Loosen felt strip (arrows) and cable strap if applicable | ||
| 6 | Remove CTEL and GPS roof antenna (A2/49) | ||
| 7 | Install in opposite order |
