Removing and installing switch in center console - AR54.25-P-3190CS
MODEL 129

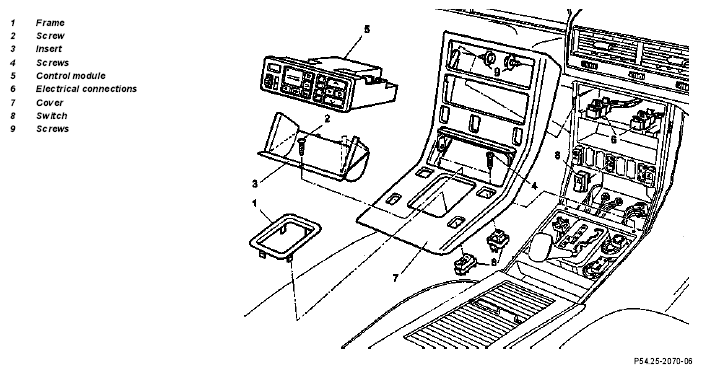

Illustrated on model 129 up to 31.05.96
| Removal, installation | |||
| 1 | Remove radio | Model 129 with single-block unit, two component control module and CD drive with radio control module, 1st generation | AR82.60-P-7502A |
| Model 129 with single-block unit, two component control module 2nd generation and MB radios | AR82.60-P-7502EA | ||
| 2 | Remove frame (1) from selector lever | ||
| 3 | Unscrew screw (2) | ||
| 4 | Remove insert (3) | ||
| 5 | Unscrew screws (4) | ||
| 6.1 | Press catches at bottom of control module (5) downward and pull out control module (5) | Model 129 up to 31.05.96 | |
| 6.2 | Pull out control module | Model 129 as of 01.06.96 | |
| 7 | Unlock electrical connectors (6) on control module (5) and disconnect | ||
| 8.1 | Unscrew screws (9) | Model 129 as of 01.06.96 | |
| 9 | Pull cover (7) out of catch toward rear | ||
| 10 | Disconnect electrical connectors from switches (8) | ||
| 11 | Unclip switch | ||
| 12 | Install in the reverse order |
