Dismantling and assembling electrically adjustable jacket tube - AR46.10-P-0600A: Notes

MODEL 129, 140 with CODE (441a) Electrically adjustable steering column

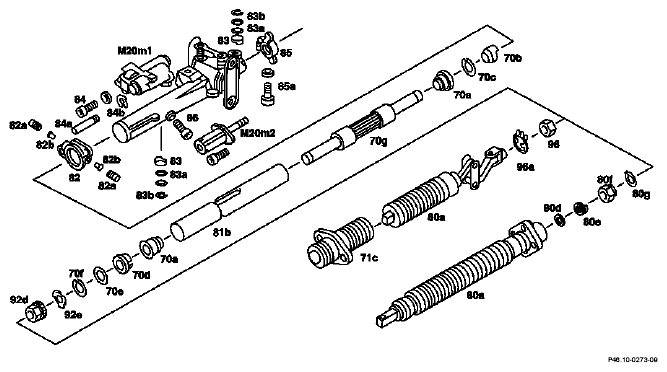

Fig 1: Identifying Electrically Adjustable Jacket Tube Dismantle/Assemble Components

	Disassembling
1	Remove jacket tube		AR46.10-P-0400A
2	Remove cup seal (71c) from the lower steering shaft
3	Detach lower steering shaft (80a)	Model 129	AR46.10-P-0500-01C
		Model 140	AR46.10-P-0500-01A
	Inspecting
4	Check lateral runout of lower steering shaft (80a)	If necessary, if tolerance is exceeded ↓ Replace lower steering shaft (80a)	*BE46.10-P-1001-01A
5	Remove lower bracket (82)		AR46.10-P-0600-02A
6	Position height adjuster in center position
7	Remove motor (M20m2) responsible for the tilt adjustment
8	Remove motor (M20m1) responsible for the telescopic adjustment		AR46.10-P-0600-03A
9	Remove jacket tube thrust piece (83)	The jacket tube is equipped with 2 thrust pieces, spring packages and locking rings (83, 83a, 83b)	AR46.10-P-0600-04A
10	Remove bracket (85)
11	Unscrew cap screw (86) and remove the inner jacket tube from the outer jacket tube through the bottom
12	Disassemble inner jacket tube	Model 129	AR46.10-P-0500-02C
		Model 140	AR46.10-P-0500-02A
	Assembling
13	Reassemble inner jacket tube	Model 129	AR46.10-P-0500-02C
		Model 140	AR46.10-P-0500-02A
14	Grease inner jacket tube (81b) and insert into outer jacket tube from the bottom	The inner jacket tube must slide smoothly into the outer jacket tube.
		Long-life grease	*BR00.45-Z-1001-06A
15	Screw in guide bolt (86) and align the guide screw in the inner jacket tube (81b) with the cap screw		*BA46.10-P-1007-03A
16	Reinstall motor (M20m1) for the telescopic adjustment		AR46.10-P-0600-03A
17	Install thrust piece (83) with disk springs (83a) and fit new locking ring (83b)		AR46.10-P-0600-04A
18	Install upper bracket (85)	Model 129 up to VIN end no. 079 794 and 140 up to VIN end no. 123 446	AR46.10-P-0600-01A
		Model 129 as of VIN end no. 079 795 and 140 up to VIN end no. 123 447	AR46.10-P-0600-01B
19	Install lower bracket (82)	Ensure proper fit	AR46.10-P-0600-02A
20	Install motor (M20m2) for tilt adjustment		*BA46.10-P-1008-03A
21	Install lower steering shaft (80a)	Model 129	AR46.10-P-0500-01C
		Model 140	AR46.10-P-0500-01A
22	Apply light coat of multi-purpose paste onto cup seal (71c)
		Multi-purpose paste	*BR00.45-Z-1009-06A
23	Slide cup seal (71c) onto lower steering shaft

TEST VALUES FOR STEERING SHAFT

Number	Designation		Model 129	Model 140
BE46.10-P-1001-01A	Maximum lateral runout of lower steering shaft	mm	2.0	2.0

TEST VALUES FOR JACKET TUBE

Number	Designation		Model 129	Model 140
BE46.10-P-1001-03A	Dimension "a" on upper bracket on jacket tube	mm	21.5+0.5	21.5+0.5
		Fig. see	AR46.10-P-0600-01A	AR46.10-P-0600-01A
BE46.10-P-1002-03A	Jacket tube play at forward / back adjustment motor	mm	0.25-0.30	0.25-0.30
BE46.10-P-1003-03A	Dimension "b" from upper bracket to jacket tube	mm	30+0.5	30+0.5
		Fig. see	AR46.10-P-0600-01B	AR46.10-P-0600-01B

STEERING SHAFT

Number	Designation		Model 140 up to VIN end no. A-033 950	Model 140 as of VIN end no. A-033 951 to 166 259	Model 140 as of VIN end no. A-166 260
BA46.10-P-1004-01A	Lower steering shaft on upper steering shaft	Nm	110	110	110

JACKET TUBE

Number	Designation		Model 129	Model 140
BA46.10-P-1005-03A	Bolt of steering column tube to forward/back motor	Nm	20	20
BA46.10-P-1006-03A	Clamping bolt of top bracket to steering column tube	Nm	5	5
BA46.10-P-1007-03A	Guide bolt of inner electrically adjustable steering column tube	Nm	10	10
BA46.10-P-1008-03A	Bolt of jacket tube to height adjustment motor	Nm	5	5

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51

Fig 2: Identifying Setting Gage (140 589 04 23 00)

Fig 3: Identifying Gauge Stand (363 589 02 21 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1008-12A	Dial indicator
