Removing, installing module box - AR54.20-P-2360CS
MODEL 129 up to 31.8.95
OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES
| Op. no. | Operation text |
| Removing, installing | |||
| 1 | Remove cover on right of engine compartment | ||
| 2 | Remove module box control modules | AR54.15-P-1300-02CS | |

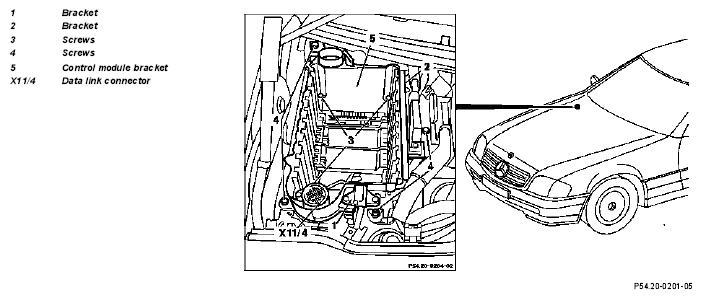

| Figure | |||
| 3 | Detach brackets (1, 2) | ||
| 4 | Remove data link connector (X11/4) | ||
| 5 | Unscrew screws (3, 4) | ||
| 6 | Disconnect blower motor connector | ||
| 7 | Take out control module bracket (5) | ||
| 8 | Pull wiring harnesses out of module box housing | ||
| 9 | Remove module box housing | ||
| 10 | Install in reverse order |
