Removal and installation of instrument cluster housing - ra54001406031x(6031)
Model 140
Preliminary work:
Instrument cluster removed (Removal and installation of the instrument cluster ).
Operation no. of operation texts and work units or standard texts and flat rates

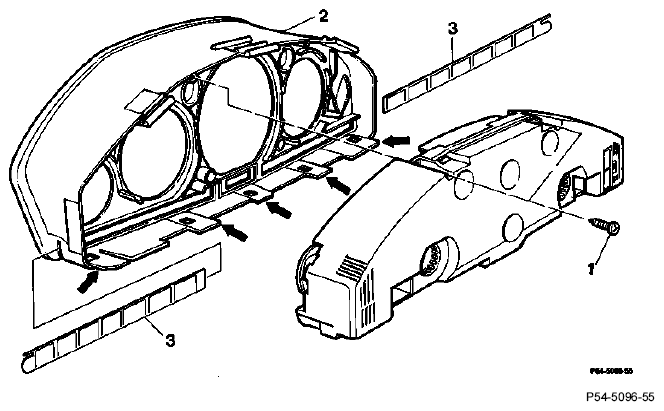

| Screws (1) | unscrew, screw in. |
| Retaining straps (arrows) | unclip, clip in. |
| Instrument cluster housing (2) | pull off, press on. Ensure reset knob of trip counter and knob for setting electronic clock are correctly located. |
| Symbol strips (3) | take out to the side, push in. |
