PTS switch, location/task - GF54.65-P-4101A: Notes
MODELS 140, 163, 168, 202, 208, 210, 215, 220 with CODE (220a) Parktronic System (PTS)

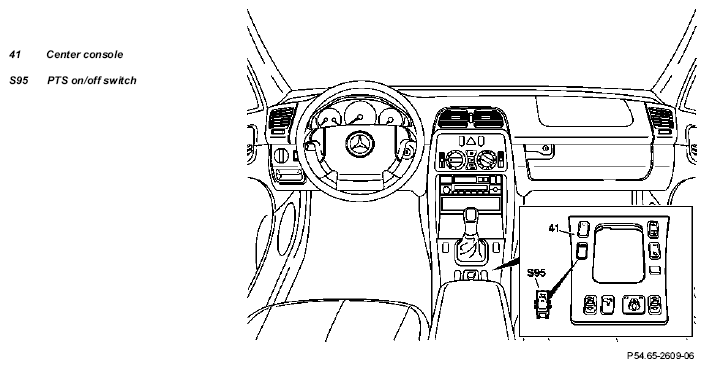

Location in models 140, 168, 202, 208, 210
Shown on model 208
| PTS switch, location | On models 140, 168, 202, 208 and 210 the PTS ON/OFF switch (S95) is fitted in the lower part of the center console. | ||
| Model 215, 220 up to 30.06.02 | GF54.65-P-4101-01A | ||
| Model 215, 220 as of 01.07.02 | GF54.65-P-4101-01AC | ||
| Model 163 | GF54.65-P-4101-01GH | ||
| PTS switch, task | To switch the Parktronic system (PTS) off/on manually by operating the PTS ON/OFF switch (S95) on models 140, 168, 202, 208 and 210. The light emitting diode in the PTS ON/OFF switch (S95) lights up when the Parktronic system (PTS) is switched off and goes out when the Parktronic system (PTS) is switched off. |
||
| Model 215, 220 as of 01.07.02 | GF54.65-P-4101-02A |
