Instrument cluster (IC) arrangement of components - GF54.30-P-0002-04L

Model 140

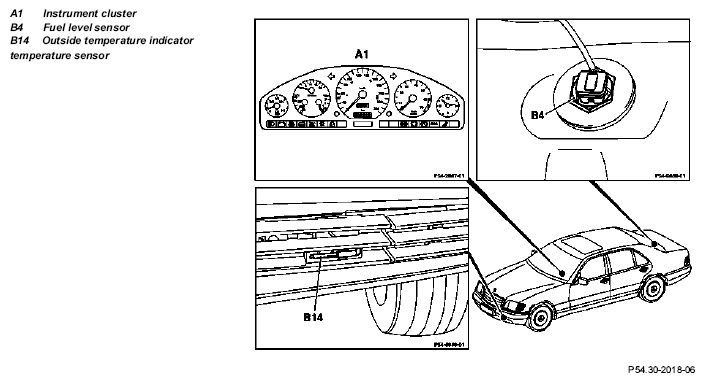

Fig 1: Identifying Instrument Cluster Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Instrument Cluster Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location on 6/8-cylinder models

Fig 3: Identifying Instrument Cluster Components (Location On 6/8-Cylinder Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location on 12-cylinder models

Fig 4: Identifying Instrument Cluster Components (Location On 12-Cylinder Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
