Steering tandem pump/suspension system ADS location/task/design/function - GF46.30-P-2200A: Notes

MODEL 129 as of 1.9.95 with CODE (216c) adaptive damping system (ADS II) with electronic level control

MODEL 140, 210 with CODE (217a) level control on rear axle with ADS

MODEL 202, 208 with CODE (480) level control on rear axle

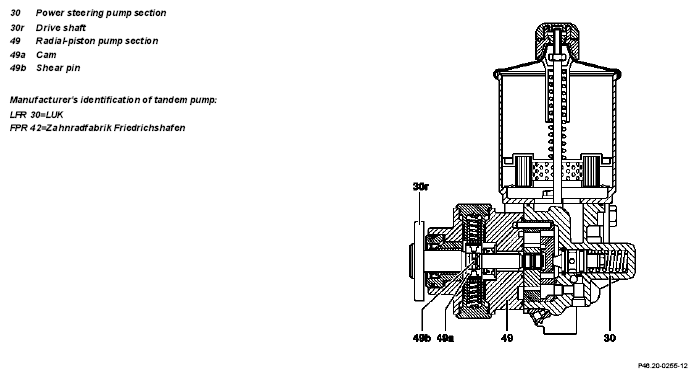

Fig 1: Identifying Steering Tandem Pump/Suspension System ADS Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Location	On front side of engine
	Task	Produce different oil pressures and volume flows irrespective of engine speed, for: the steering system for vehicles with level control or ADS
	Design	Two independent oil pumps are driven by one drive shaft for the smallest installation conditions Power steering pump section (30) Radial-piston pump section (49) They are protected from one another by a shear bridge (shear pin or sleeve)
	Power steering pump function		GF46.30-P-2100-01A
	Radial-piston pump function	With level control, ADS	GF46.30-P-2200-01A
