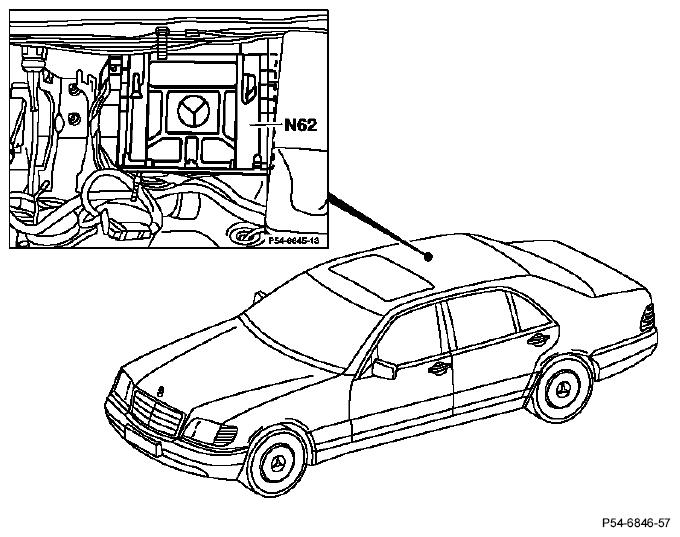

Removing and installing the Parktronic system control unit (N62) - ra54001401066x(1066)
Model 140
| Quiescent current retention unit | disconnect, connect. |
| Ground lead on battery | disconnect, reconnect (Disconnection and connection of the battery ). |
| Rear seat | remove, install (REMOVAL AND INSTALLATION OF REAR SEAT AND BACKREST ). |
| Control module (N62) | remove, install. |
|
NOTE:
Erase fault memory and/or code control module, see Diagnosis Manual, Information/communication, volume 2, index. 8.1.
|
COMMERCIALLY AVAILABLE TESTER
| Quiescent current retention unit | e.g. Hans Zeheter CMP 12.2 |
