Removal and installation of switches in center console cover - ra54001403190x(3190)
A./B. Switches in bottom/top cover up to 08/95, C. Vehicles as of 09/95 Model 140
Operation no. of operation texts and work units or standard texts and flat rates
- Switches in bottom cover up to approx. 08/95
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

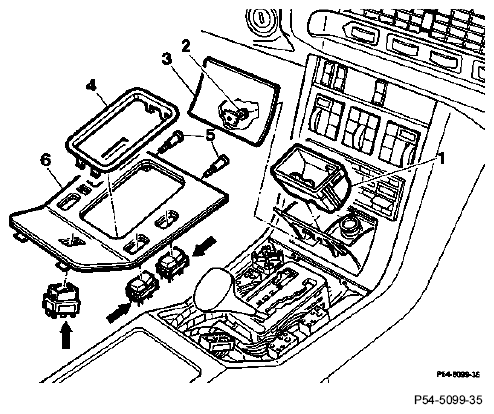

Quiescent current retention unit disconnect, connect. Insert (1) of ashtray take out, insert. Screw (2) slacken, do not unscrew fully, tighten. Panel (3) take off, fit on. Frame (4) at selector lever remove, install. Screws (5) unscrew, screw in. Bottom cover (6) raise at ashtray and take out to the front; insert from the front. Electrical connections unplug, plug in. Switches (arrows) unclip, clip in. COMMERCIALLY AVAILABLE TESTERQuiescent current retention unit e.g. Hans Zeheter CMP 12.2 - Switches in top cover up to approx. 08/95
Preliminary work:
Radio removed (82-7502).
Bottom cover removed, A.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

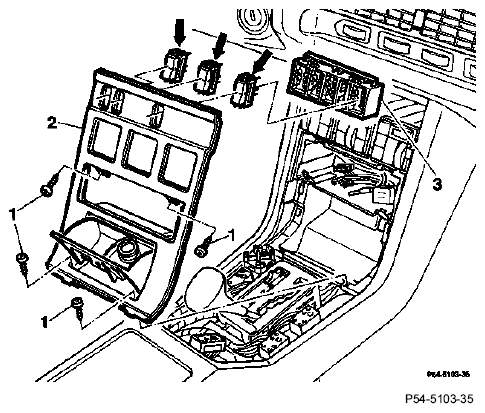

Quiescent current retention unit disconnect, connect. Screws (1) unscrew, screw in. Top cover (2) raise at ashtray, take out; insert from above and push down. Switch carrier (3) unclip, clip in. Switches (arrows) pull off, plug in. COMMERCIALLY AVAILABLE TESTERQuiescent current retention unit e.g. Hans Zeheter CMP 12.2 - Vehicles as of approx. 09/95
Preliminary work:
Radio removed (82-7502).
A/C pushbutton control panel removed.

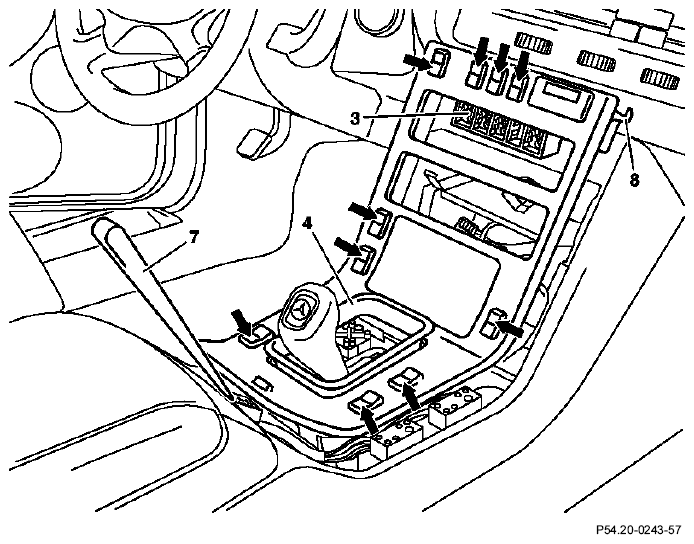

Quiescent current retention unit disconnect, connect. Frame (4) at selector lever remove, install. Cover panel (6) unclip at bottom with plastic wedge (7). Cover panel remove from guide lugs (8). Electrical connections unplug, plug in. Switches (arrows) pull off, plug in. Switch bracket unplug, plug in. Switches (arrows) pull off, plug in. COMMERCIALLY AVAILABLE TESTERQuiescent current retention unit e.g. Hans Zeheter CMP 12.2
