Function of trip computer - RA54001070415X(54-415)

A. Models 107, 124 and 126

The trip computer is available as optional equipment ex-factory. It provides 12 items of information regarding time, distance, speed and fuel consumption. This information is displayed on the display unit and can be called up using the keys on the keyboard.

  1. Components and their functions
    1. Clock

      The clock with its digital 24-hour display and its release knob are located in the instrument cluster.

      Setting the time

      1. Pull right-hand knob on instrument cluster
        • the colon flashes.

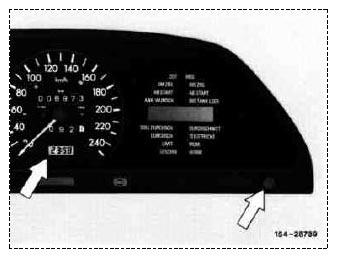

          Fig 1: Locating Display Unit
          G04686639Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
      2. Set the correct time using the keys

        1000 BUTTON = hours, tens digit

        100 BUTTON = hours, units

        10 BUTTON = minutes, tens digit

        1 BUTTON = minutes, units

      3. Pull right-hand knob on instrument cluster again - the colon stops flashing and the clock starts accurately to the second at the set time.

      Setting according to time signal:

      In the range of 1 min 59 s before or after any full hour, pull the right-hand knob on the instrument cluster on the last tone of the time signal - the clock will start on the hour, accurate to the second.

      NOTE: All the values in the trip computer are cancelled if the operating voltage is interrupted.
      When the circuit is connected again, the clock indicates 12:00 hours and the display flashes. The time must then be set so that the computer is operational again.
    2. Instrument cluster

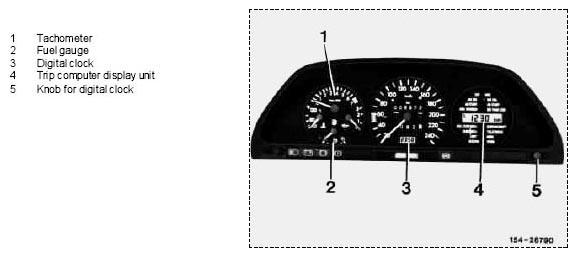

      Fig 2: Identifying Instrument Cluster Components
      G04686640Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    3. Display unit

      The display unit in the instrument cluster is divided into 4 segments, each containing 3 pieces of information. It is fully illuminated throughout the day; when the lights are switched on it is continuously regulated in conjunction with the instrument illumination.

      The information selected is indicated by the illuminated arrow. The value for the selected information appears in the display window.

      The display includes:

      K = short-distance operation or

      L = long-distance operation,

      numerical value and unit of measurement.

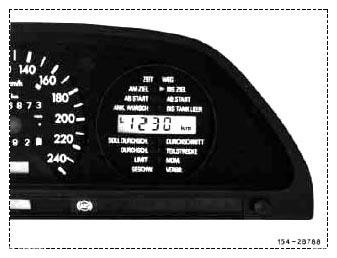

      Fig 3: Identifying Display Unit In Instrument Cluster
      G04686641Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    4. Keyboard

      The keyboard with 8 keys is located on the center console. The upper keys have multiple functions.

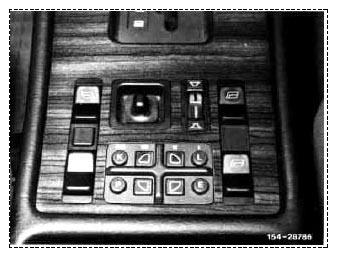

      Fig 4: Identifying Keyboard On Center Console
      G04686642Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      1000 BUTTON - Select short-distance operation

      • Cancel stored values
      • Enter thousands digit
      • Time: enter tens digit for hours

      100 BUTTON - Call up TIME information

      • Enter hundreds digit
      • Time: enter units for hours

      10 BUTTON - Call up DISTANCE information

      • Enter tens digit
      • Time: enter tens digit for minutes

      1 BUTTON - Select long-distance operation

      • Cancel stored values
      • Enter units
      • Time: enter units for minutes

      PROGRAMMING BUTTON - Programming key

      press before entering numbers

      SPEED INFORMATION - Call up SPEED information

      CONSUMPTION INFORMATION - Call up CONSUMPTION information

      INPUT ENTER BUTTON - Input enter key

      press after entering numbers

      The trip computer is operational when the key in the steering lock is in position 2. For certain functions the digital clock in the instrument cluster must be set to the correct time.

    5. Control unit and sensors

      In addition to the display unit in the instrument cluster and the keyboard, the trip computer also comprises the following sensors and control units:

      1. An electronic control unit that operates with basic data which vary according to the vehicle model and are contained in a coding plug at the rear of the control unit. These data include the speedometer systems constant, the fuel tank characteristic, the tank reserve etc.

        The computer uses these data to compute certain functions, e.g. if no fuel consumption signal is available but the function DISTANCE - UNTIL TANK EMPTY is called up.

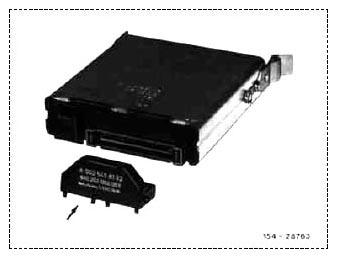

        Fig 5: Identifying Control Unit And Sensors
        G04686643Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

        Arrangement of trip computer control unit (N41), model 107

        Behind glove box

        Fig 6: Identifying Trip Computer Control Unit - Model 107
        G04686644Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

        Arrangement of trip computer control unit (N41), model 124

        Behind right-hand footwell covering

        Fig 7: Identifying Trip Computer Control Unit - Model 124
        G04686645Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

        Arrangement of trip computer control unit (N41), model 126

        Behind instrument cluster

        Fig 8: Identifying Trip Computer Control Unit - Model 126
        G04686646Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
      2. The time is specified via the digital clock in the instrument cluster.
      3. The signal for the distance driven or speed is taken from the electronic speedometer in models 107 and 126, and from the Hall-effect road speed sensor in model 124. The computer bases its calculations on the effective speed, i.e. without the lead of the speedometer.

        Arrangement of terminal block, stop lamp switch/electronic speedometer (X21/2), model 107

        Behind instrument cluster.

        Fig 9: Identifying Stop Lamp Switch/Electronic Speedometer - Model 107
        G04686647Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

        Arrangement of terminal block, stop lamp switch/electronic speedometer (X21/2), model 126

        Behind instrument cluster

        Fig 10: Identifying Stop Lamp Switch/Electronic Speedometer - Model 126
        G04686648Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

        Arrangement of multipoint connector, Hall-effect sensor (X53/5), model 124

        Behind instrument cluster

        Fig 11: Identifying Hall-Effect Sensor Multipoint Connector - Model 124
        G04686649Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
      4. The signal for the fuel supply is taken from the fuel gauge sensor; this is the same signal that controls the fuel gauge in the instrument cluster. The trip computer uses this information to determine the driving range.
      5. The control unit receives the signal for the fuel consumption from the CIS-E control unit via the trip computer connector (X61).
        NOTE: In model 126 with CIS fuel injection (up to approx. 08/85), the consumption signal is taken directly from the mixture formation system. A potentiometer is used to convert the position of the air flow sensor into an electrical signal proportional to the fuel consumption.

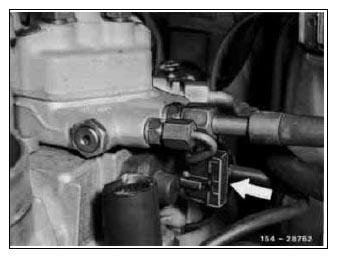

        Arrangement of air flow sensor position indicator (B2), model 126 with CIS fuel injection (up to approx. 08/85)

        Fig 12: Locating Air Flow Sensor Position Indicator
        G04686650Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Arrangement of trip computer connector (X61), model 107

    Above the fuse box

    Fig 13: Identifying Trip Computer Connector - Model 107
    G04686651Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Arrangement of trip computer connector (X61), model 124

    In the fuse/relay box

    Fig 14: Identifying Trip Computer Connector - Model 124
    G04686652Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Arrangement of trip computer connector (X61), model 126 with CIS-E fuel injection (as of approx. 09/85)

    In right side of footwell

    Fig 15: Identifying Trip Computer Connector - Model 126
    G04686653Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    From the constant data stored in the electronic control unit, and the variable data supplied by the sensors in the vehicle or entered by the user as required, the trip computer continuously calculates the current values - values updated max. once per second - stores them in memory and displays these values as information for the user.

  2. Individual functions
    1. Time

      TIME - AT DESTINATION

      Press key 100 BUTTON

      Fig 16: Identifying Electronic Control Unit Display - Time - At Destination
      G04686654Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      Expected arrival time calculated by the computer. This is based on the average speed over the last 10 minutes (ignition on). No value is displayed in the window if

      • no value has been entered for DISTANCE UP TO DESTINATION,
      • the set value for DISTANCE UP TO DESTINATION was reached before arrival at the destination,
      • the journey took more than 24 hours.

      TIME - FROM START

      Press key 100 BUTTON

      Driving time in hours and minutes determined by the computer since the stored values were last cancelled.

      After 99:59 h the clock starts again at 0:00 h.

      TIME - DESIRED ARRIVAL

      Press key 100 BUTTON

      Desired time of arrival to be entered into the computer by the driver.

      The desired driving time should be less than 24 hours.

      If no value is stored, 4 hyphens appear in the display window.

      To enter digits, first press key PROGRAMMING BUTTON until four zeros appear in the display window, then enter the digits using the keys 1000 BUTTON , 100 BUTTON , 10 BUTTON and 1 BUTTON and finally press key INPUT ENTER BUTTON .

    2. Distance

      DISTANCE - UP TO DESTINATION

      Press key 10 BUTTON

      Distance to the destination to be entered into the computer by the driver.

      Fig 17: Identifying Electronic Control Unit Display - Distance - Up To Destination
      G04686655Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      If no value is stored, 4 hyphens appear in the display window.

      If the value entered is exceeded during the journey, 0 km is displayed.

      To enter digits, first press key PROGRAMMING BUTTON until four zeros appear in the display window, then enter the digits using the keys 1000 BUTTON , 100 BUTTON , 10 BUTTON and 1 BUTTON and finally press key INPUT ENTER BUTTON .

      DISTANCE - FROM START

      Press key 10 BUTTON

      Distance covered by the vehicle and determined by the computer since the stored values were last cancelled.

      After 9 999 km the count starts again at 0 km.

      DISTANCE - UNTIL TANK EMPTY

      Press key 10 BUTTON

      Driving range with existing tank contents determined by computer. The calculation is based on the CONSUMPTION PER SECTION over the last 10 minutes. The displayed value changes as the driving conditions change (e.g. driving at full throttle or on gradients). When the vehicle comes to a standstill, the value displayed last is stored.

      When the battery is connected, a model-specific fixed value for the consumption per section is used as the basis for calculating the driving range.

      NOTE: When filling up, withdraw the key from the steering lock or turn it to position 0 or 1.
    3. Speed

      SPEED - NOMINAL AVERAGE

      Press key SPEED INFORMATION

      Average speed determined by the computer to be driven in order to arrive at the destination at the desired time.

      For this, the values must be entered for DISTANCE UP TO DESTINATION and TIME DESIRED ARRIVAL.

      Fig 18: Identifying Electronic Control Unit Display - Speed - Nominal Average
      G04686656Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      No value is displayed in the window if one of the programmed values was reached before arrival at the destination.

      SPEED - AVERAGE

      Press key SPEED INFORMATION

      Average speed calculated by the computer since the stored values were last cancelled.

      SPEED - LIMIT

      Press key SPEED INFORMATION

      Speed to be entered into the computer by the driver.

      If this speed is exceeded, the entered value flashes in the display window and a warning buzzer sounds.

      This is based not on the speedometer display, but on the speed determined by the trip computer.

      The warning buzzer stops after approx. 4 seconds and the display returns to the information selected last.

      The warning buzzer also stops if another key is pressed within this 4-second period. This switches off the warning. A new warning sounds only when LIMIT is selected and the key PROGRAMMING BUTTON is pressed.

      LIMIT arrow flashes=warning buzzer not activated.

      LIMIT arrow not flashing=warning buzzer activated.

      To enter digits, first press key PROGRAMMING BUTTON until three zeros appear in the display window, then enter the digits using the keys 100 BUTTON , 10 BUTTON and 1 BUTTON and finally press key INPUT ENTER BUTTON .

    4. Consumption

      CONSUMPTION - AVERAGE

      Press key CONSUMPTION INFORMATION

      Average fuel consumption determined by the computer since the stored values were last cancelled.

      Fig 19: Identifying Electronic Control Unit Display - Consumption - Average
      G04686657Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      The average fuel consumption cannot be calculated if the vehicle is at a standstill and the engine is running. The window displays the maximum value 40l/100 km.

      CONSUMPTION - PER SECTION

      Press key CONSUMPTION INFORMATION

      Average fuel consumption determined by the computer over the last 10 minutes of a journey. When the stored values are cancelled, an engine-specific value programmed in the computer appears.

      The average fuel consumption may also be measured over a given distance or a given period of time:

      1. Press key PROGRAMMING BUTTON - the computation starts.
      2. Press key PROGRAMMING BUTTON again - the computation stops.

        The calculated value appears in the display window.

      To cancel this value, press the key INPUT ENTER BUTTON or select another type of information.

    CONSUMPTION - MOMENTARY

    Press key CONSUMPTION INFORMATION

    Momentary fuel consumption determined by the computer during driving. No value is displayed at speeds below 20 km/h.

  3. Operation

Short-distance and long-distance

operation

(K and L-operation)

One of 2 operating modes may be selected. These are indicated by a K or an L in the display window:

K=short-distance operation

L=long-distance operation

During K-operation the displayed values refer to the current journey, unless the values from the previous journey are included in the computation by pressing the key 1000 BUTTON at the start of the journey.

During L-operation the values of previous journeys are automatically compiled with those of the current journey to form an overall display.

The values are computed for both K and L-operation.

In this way, for example, the entire distance during a one-day trip, during a vacation or during a month can be subdivided into several sections. Properly programmed, the values for the total distance can be computed and displayed during L-operation and the values for a section during K-operation.

K-operation

When the key in the steering lock is turned to position 2, the trip computer is initially switched to K-operation (a K flashes in the display window) and the DISTANCE UP TO DESTINATION arrow lights up.

If the key 1000 BUTTON is not pressed, any stored values are cancelled automatically in K-operation after driving 1000 m; during L-operation they continue to be stored. New values are computed from the start of the journey.

Fig 20: Identifying K-Operation Display
G04686658Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Certain items of information can be called up already.

If all the information is to be computed, numerical inputs must be made for DISTANCE - UP TO DESTINATION TIME - DESIRED ARRIVAL SPEED - LIMIT.

Fig 21: Identifying Distance, Time And Speed Display Screen
G04686659Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Stored values are not cancelled if the key 1000 BUTTON is pressed momentarily or when the key PROGRAMMING BUTTON is pressed prior to entering the digits (the K in the display window stops flashing).

NOTE: If the journey is interrupted, the key 1000 BUTTON must be pressed before continuing or the values stored so far will be cancelled automatically.

The values stored during K-operation may also be cancelled manually. To do this, press the key 1000 BUTTON until 0:00 h appears in the display window and the TIME FROM START arrow lights up.

The values must be cancelled manually if the computations are to be made from the start of the journey and when numbers are entered for TIME - DESIRED ARRIVAL and DISTANCE UP TO DESTINATION.

The inputs for DISTANCE UP TO DESTINATION or TIME - DESIRED ARRIVAL can also be corrected individually during the journey without losing the information. The computer then continues using the new data.

L-operation

When the key in the steering lock is in position 2, the computer can be switched over to L-operation by tapping the key 1 BUTTON .

Values stored during L-operation are not automatically cancelled. They are combined with the values for the current journey. Manual cancellation of the values stored during L-operation may be used to specify the time from which new calculations are started. To do this, press the key 1 BUTTON until 0:00 h appears in the display window and the TIME FROM START arrow lights up.

B. Models 129 and 140

The trip computer is available as optional equipment ex-factory. It provides information on the time, distance, speed and fuel consumption. The information can be called up using the keys on the keyboard and appears on the display in the dashboard.

  1. Components and their functions
    1. Trip computer control unit with display  .

      The control unit and display are combined into a single unit installed in the dashboard. From constant basic data and variable data supplied by the sensors in the vehicle via the instrument cluster or entered by the user, the control unit continuously computes current values, e.g. for fuel consumption, driving time and average speed, stores them and displays them on the display.

      Fig 22: Identifying Trip Computer Control Unit With Display
      G04686660Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      Closing the storage compartment switches off the display via microswitch S71/1 (switch, trip computer cover).

      Computations continue internally even when the storage compartment is closed.

      Monitoring of the limit speed continues.

      Fig 23: Identifying Via Microswitch
      G04686661Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    2. Illumination

      The illumination of the trip computer display can be regulated by way of the rheostat in the instrument cluster.

      In addition, the brightness is controlled automatically via a sensor (arrow) which regulates the illumination of the display according to the light conditions. This occurs with the instrument illumination either on or off.

      Fig 24: Locating Via Sensor
      G04686662Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    3. Clock

      The time appears automatically on the display whenever the time on the instrument cluster clock is adjusted.

      Display range 0:00 to 23:59

      Synchronizing/setting the time

      Synchronizing the times of the instrument cluster and trip computer clocks.

      1. Turn key in steering lock to position 0.
      2. Set instrument cluster clock to 12:00.
      3. Hold down clock synchronization key "A" for at least 5 seconds.
      4. 12 u appears in the display.
      5. Then set the instrument cluster clock to the appropriate time.
        Fig 25: Locating Synchronization Key
        G04686663Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    4. Keyboard

      The keyboard  consists of:

      Three function keys

      • Limit
      • Start
      • Destination

      Four keys for entering digits

      • 1
      • 10
      • 100
      • 1000

      One switchover key

      • K=short-distance operation
      • L=long-distance operation
        Fig 26: Identifying Keyboard With Function Keys
        G04686664Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      The K/L switchover key can be used to select operating mode K or L.

      The operating mode selected is indicated on the display.

      K=short-distance operation

      L=long-distance operation

      During K-operation the displayed values refer to the current journey.

      During L-operation the values of previous journeys are compiled with those of the current journey to form an overall display.

      The values are computed both for K and L-operation.

    5. Display

      Three different display blocks may be selected:

      • From start
        Fig 27: Identifying Display Block - Start
        G04686665Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
      • Up to destination
        Fig 28: Identifying Display Block - Destination
        G04686666Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
      • Limit
        Fig 29: Identifying Display Block - Limit
        G04686667Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Operation

Turn the key in the steering lock to position 2.

The display block FROM START appears on the display and the "K" for short-distance operation flashes.

The user can now select one of the 3 different display blocks.

FROM START

Fig 30: Identifying Display Block - From Start
G04686668Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The following information is displayed:

  1. Distance from start (km).
  2. Time from start (h and min).
  3. Average speed (km/h).
  4. Average fuel consumption (l/100 km).
  5. Short or long-distance operation.
    Fig 31: Identifying Display Information
    G04686669Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

K-operation  : The stored values are retained by tapping the Start key. If the Start key is not pressed, any stored values are automatically cancelled after driving 2 km. New values are computed from the start of the journey.

L-operation  : Stored values are not automatically cancelled but are combined with the values for the current journey.

K and L stored values  : May be cancelled by holding down the Start key (until the signal tone sounds).

NOTE: In the LIMIT display block, only the input speed can be changed.

UP TO DESTINATION

Fig 32: Identifying Display Block - Up To Destination
G04686670Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The following information is displayed:

  1. Distance up to destination (programmable).
  2. Arrival time at destination.
  3. Driving range until tank empty.
  4. Average fuel consumption.
  5. Short or long distance.
    Fig 33: Identifying Display Information
    G04686671Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In order to be able to calculate the "Time at destination" function, the computer requires the input of the distance (km) to the destination before the start of the journey.

Different destination distances can be stored in "K" and "L". This cancels any existing data.

Input  :

  1. Press the Destination key until the signal tone sounds. ("L" or "K" and "Destination" flash until the input is complete.)
  2. Enter the desired distance in the short or long-distance memory using the keys 1000, 100, 10 and 1.
  3. Confirm the input: tap the Destination key.

    The "Time at destination" function is computed from the time that "Distance up to destination" is entered according to the current driving situation.

    NOTE: If no destination information is entered, a question mark (?) flashes for approx. 20 seconds when the destination block is selected (requesting input).

LIMIT

  1. Speed limit (programmable).
    Fig 34: Identifying Display - Speed Limit
    G04686672Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Input  :

  1. Press the Limit key until the signal tone sounds.
  2. Entered desired speed using the keys 100, 10 and 1.
  3. Confirm the input: tap the Limit key.
    Fig 35: Locating Limit Key
    G04686673Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
NOTE: There is no alarm if the input limit speed is below 10 km/h.

Alarm  :

When the input speed is exceeded, there is an approx. 4-second warning in the form of gong tones and the input speed flashes synchronously. If the compartment cover is closed the alarm is acoustic only.

Switching off the acoustic alarm signal:

Press any key during the alarm.

Switching the acoustic alarm signal back on:

  1. Manually: tap the Limit key.
  2. Automatically: when the journey is interrupted and the key is withdrawn from the steering lock.
NOTE: The Limit function is calculated on the basis of the effective speed, i.e. not including the legally stipulated lead of the speedometer.
