Instrument cluster (IC), location of components - GF54.30-P-0002-04B

Model 140

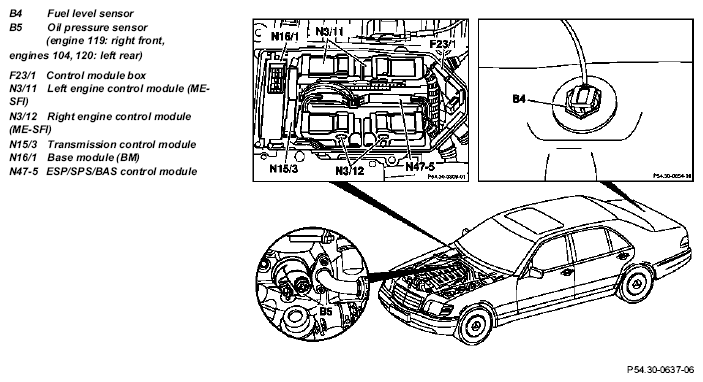

Fig 1: Identifying Instrument Cluster Components Location

G05438974

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
