Instrument cluster (IC) arrangement of components - GF54.30-P-0002-04G

Model 140

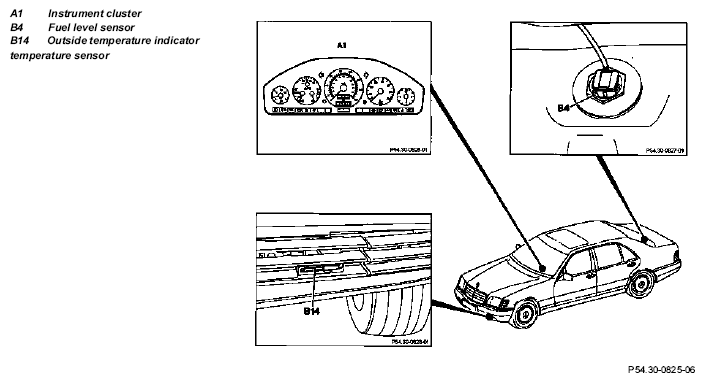

Fig 1: Identifying Instrument Cluster Components (1 Of 2)
G05438975Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Instrument Cluster Components (2 Of 2)
G05438976Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
