Removing and installing handset in armrest - AR82.70-P-8913A

MODEL 124, 140 with CODE (274) MB D-network telephone

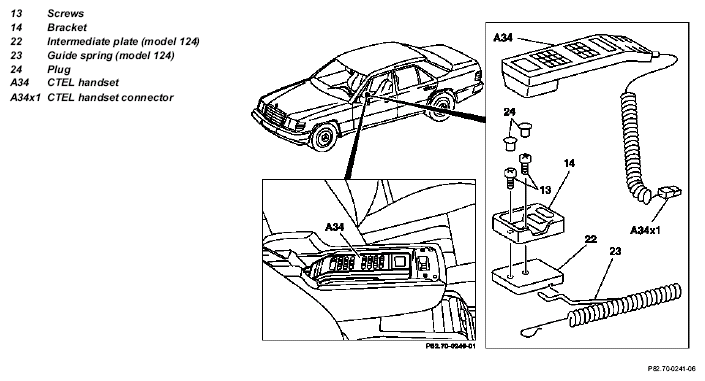

Fig 1: Identifying Handset In Armrest Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Disconnect CTEL handset connector (A34x1) and remove CTEL handset (A34)
	Modified CTEL handset (A34)		BT82.70-P-9403-03A
2.1	Remove coiled cable from guide spring (23)	Model 124
3	Remove plug (24) and unscrew screws (13)
4.1	Remove bracket (14)	Model 140
5.1	Remove bracket (14) with intermediate plate (22) and guide spring (23)	Model 124
6	Install in reverse order
