Removing and installing TELE AID emergency call system handset - AR82.95-P-0003A

MODEL 140 with CODE (348) TELE AID emergency call system

Illustrated on model 140 sedan

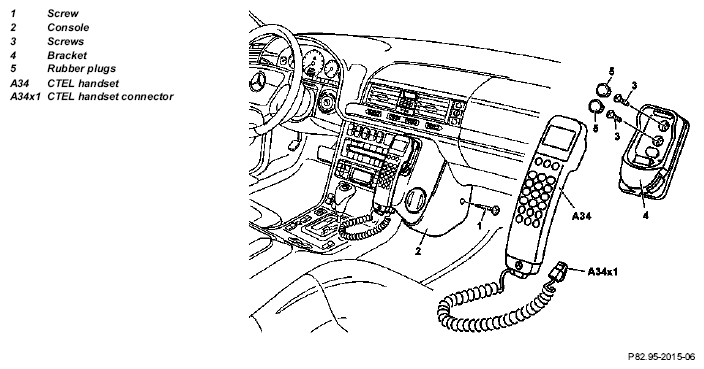

Fig 1: Identifying TELE AID Emergency Call System Handset Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove CTEL handset (A34/4))	Disconnect CTEL handset (A34) from CTEL handset connector (A34x1).
2	Remove radio
3	Pivot cover on center console up (screwed)
4	Remove console (2)	The console (2) is inserted into the center console and fastened with screw (1)
5	Pull out rubber plugs (5)
6	Unscrew screws (3) from bracket (4)
7	Install in opposite order
