Light Module Fuse Box N7-1

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2001 Mercedes-Benz E430, 2001 Mercedes-Benz E320, 2000 Mercedes-Benz E430, 2000 Mercedes-Benz E320, and 1999 Mercedes-Benz E300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Light module fuse box N7-1 is located to the left of exterior lamp switch, in door opening. See Fig 1 -Fig 3

Fig 1: Locating Light Module Fuse Box N7-1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

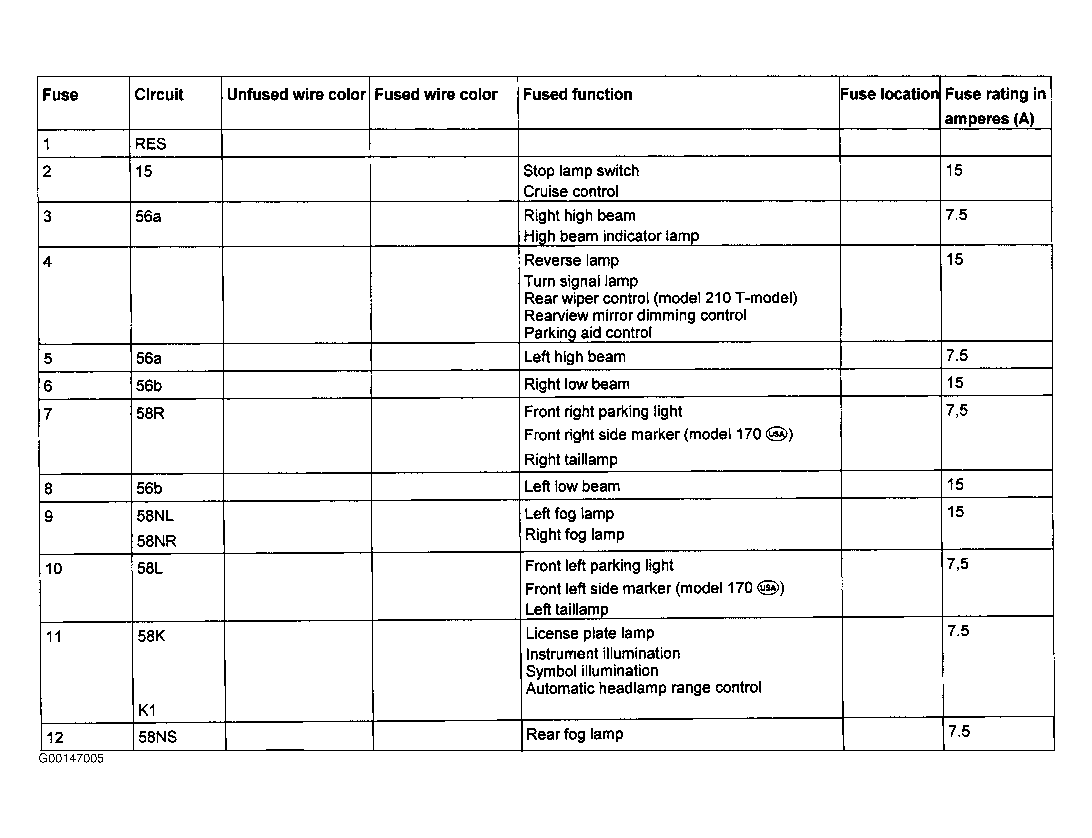

Fig 2: Locating Fuses On Light Module Fuse Box N7-1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

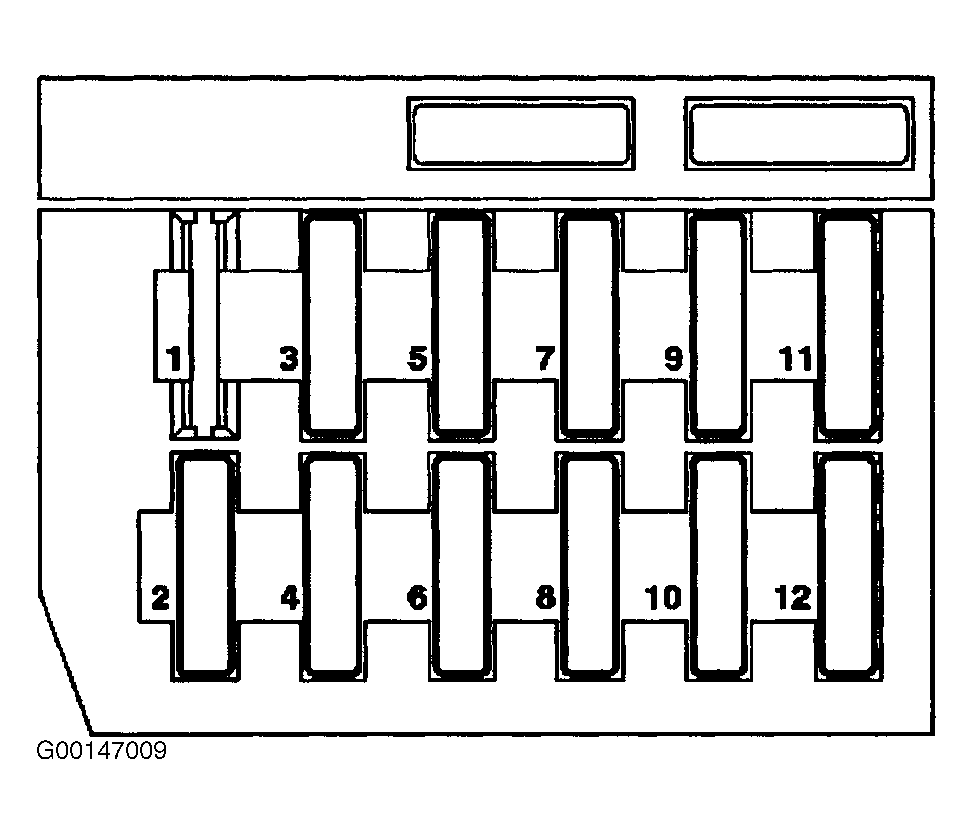

Fig 3: Identifying Fuses 1-12 On Light Module Fuse Box N7-1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
