Engine Compartment Fuse & Relay Box F1 (Fuse Blocks A-D & F)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2001 Mercedes-Benz E430, 2001 Mercedes-Benz E320, 2000 Mercedes-Benz E430, 2000 Mercedes-Benz E320, and 1999 Mercedes-Benz E300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Engine compartment fuse and relay box F1 is located in the left rear corner of engine compartment. See Fig 1 -Fig 9

Fig 1: Locating Engine Compartment Fuse & Relay Box F1

G00033049

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Fuse Blocks A-D & F On Engine Compartment Fuse & Relay Box F1

G00147946

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Locating Fuses On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

G00147907

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Fuses 1-9 On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

G00147908

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Locating Fuses On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

G00147925

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Fuses 10-11 On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

G00147920

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

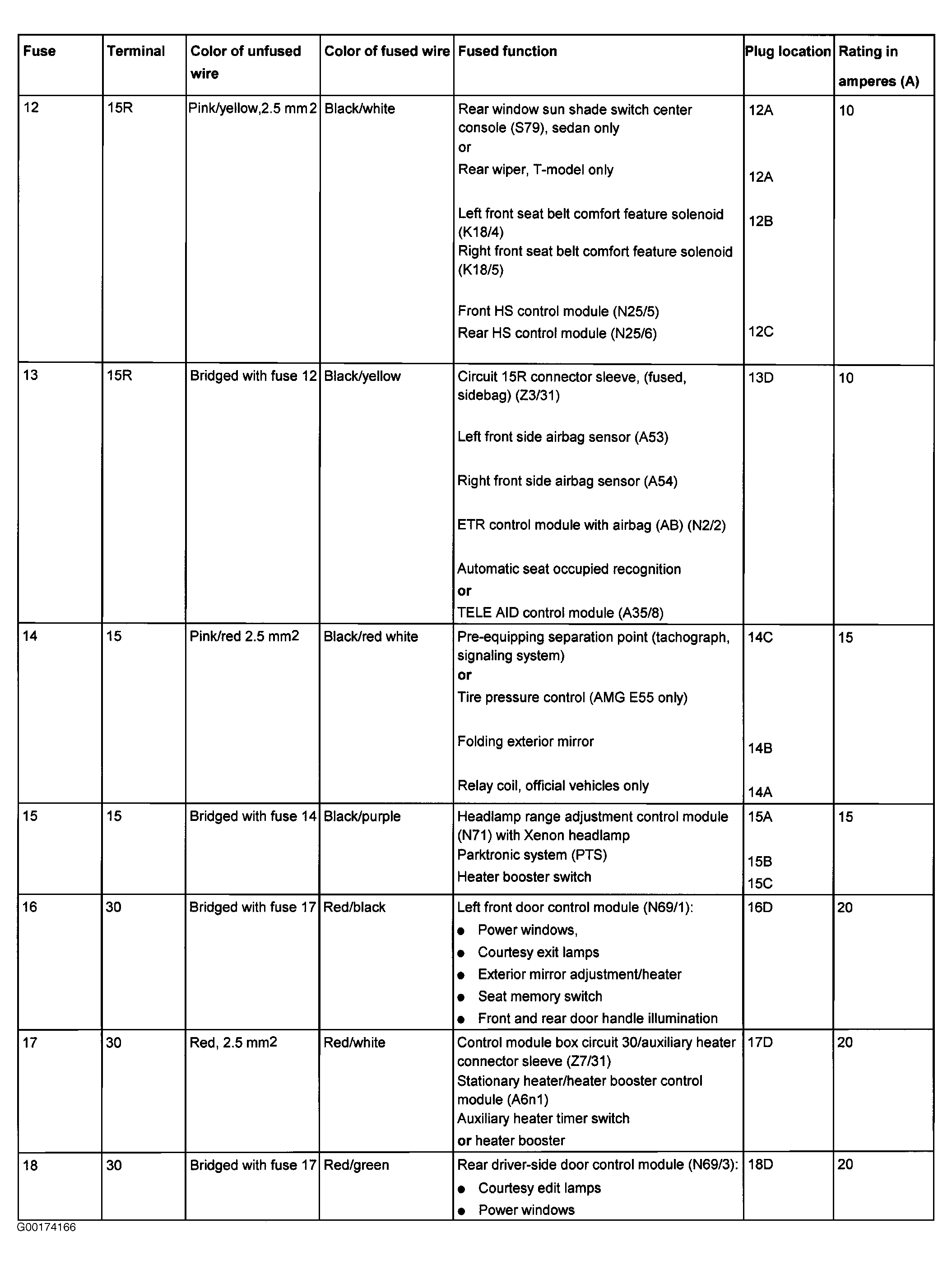

Fig 7: Identifying Fuses 12-18 On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

G00174166

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

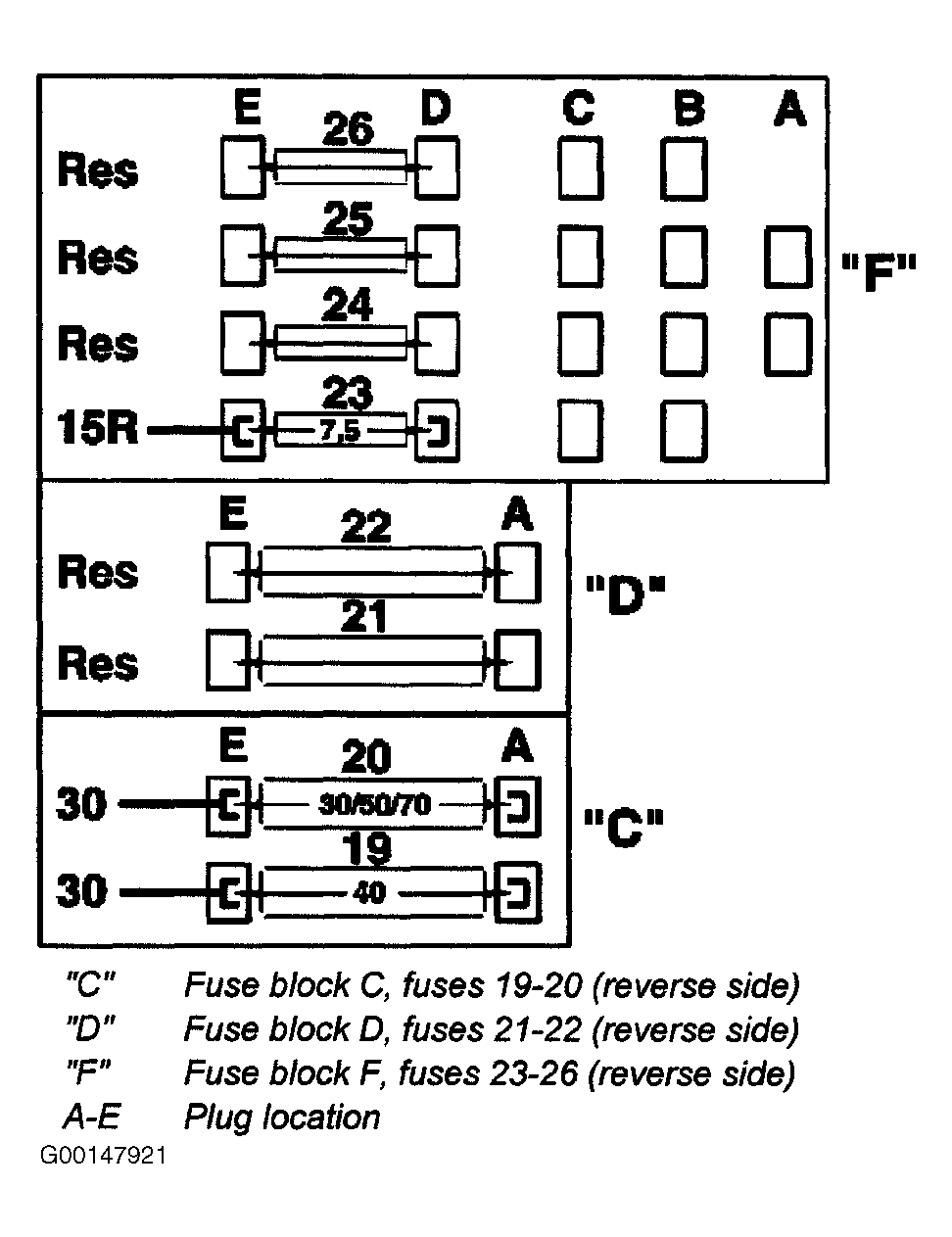

Fig 8: Locating Fuses On Fuse Blocks C, D & F Of Engine Compartment Fuse & Relay Box F1

G00147921

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Identifying Fuses 19 & 20 On Fuse Block C, Fuses 21 & 22 On Fuse Block D & Fuses 23-26 On Fuse Block F Of Engine Compartment Fuse & Relay Box F1

G00147917

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
