Removing and installing left and right air intake covers - AR83.25-P-1400E

MODEL 202, 208

Illustrated on model 202

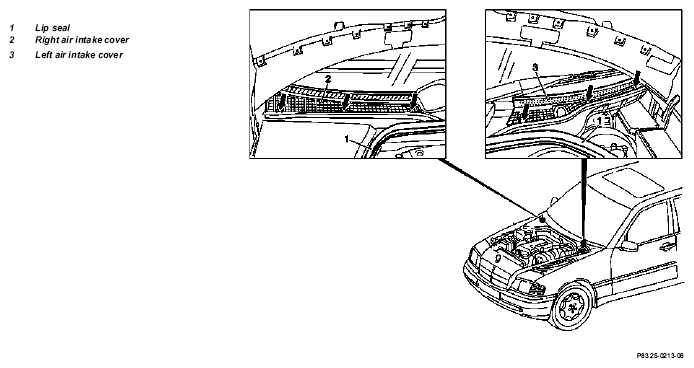

Fig 1: Identifying Left And Right Air Intake Covers Remove/Install Components - Illustrated On Model 202

	Removal, installation
1	Pull off lip seal (1)
2	Unclip 3 catch mounts (arrows) on each side and remove cover upward
3	Reinstall in opposite order
