Removing and installing sun visor - AR68.60-P-5480KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

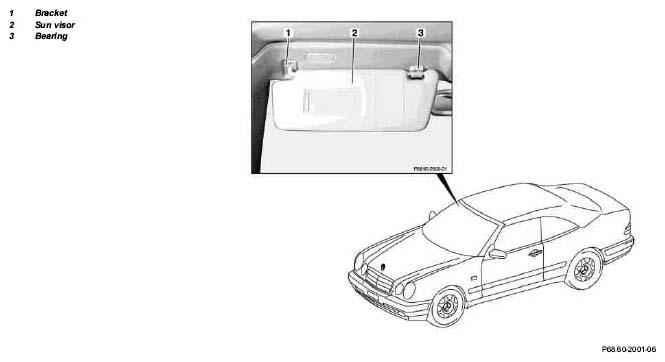

Fig 1: Identifying Sun Visor Remove/Install Components - Model 208.435 /444 /445 /447 /448 /465 /470

	Removing, installing
1	Unscrew mount (1) from sun visor (2)
2	Unhook sun visor (2) from inner bearing (2)
3	Remove bearing (3)	Open cover and unscrew bearing
4	Disconnect electrical connector	Carefully pull connector out of roof frame paneling
5	Install in the reverse order
