Adjusting wiper system - AR82.30-P-6400-01S

Wiper arm test and adjustment values

Number	Designation		Model 129	Model 202	Model 208	Model 210
BE82.30-P-1001-01G	Angle of incidence of wiper arm in park position	∠ °	-2.0...-6.0	-2.0...-6.0	-2.0...-6.0	-2.0...-6.0

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

The wiper system may only be adjusted if the test value deviates from the tolerance range in park position.

In right-hand drive vehicles the sign for the test and adjustment values must be changed.

Shown on model 210

Mount angle measuring device (A) with adapter onto wiper arm (1).
Ensure accessibility of screw (2) at firewall.
The horizontal installation position of the wiper system can be modified at this attachment point of the wiper system.
Undo screw (2) and slide bracket of wiper system using pulling hook (3) horizontally until the correct adjustment value is displayed on the scale of the angle measuring device (A).
Tighten bolts (2) fully.
Remove angle measuring device (A) with adapter from wiper arm (1).
Carefully place wiper arm (1) onto windshield.

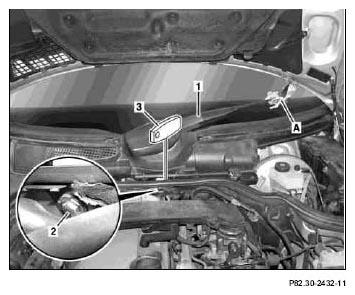

Fig 2: Adjusting Wiper System
