Check wiper arm - AR82.30-P-6050-01E

Wiper arm test and adjustment values

Number	Designation		Model 129	Model 202	Model 208	Model 210
BE82.30-P-1001-01G	Angle of incidence of wiper arm in park position	∠ °	-2.0...-6.0	-2.0...-6.0	-2.0...-6.0	-2.0...-6.0

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

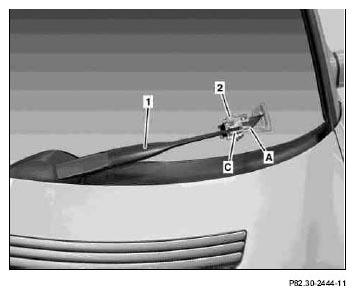

Shown on model 210, wiper system in park position

Clamp adapter (C) with angle measuring device (A) by tightening the knurled bolt (2) at the head of the wiper arm (1).
Lower wiper arm (1) until all three contact points on the base of the angle measuring device (A) contact the windshield.
Read off angle of incidence of wiper arm (1) on the scale of the angle measuring device (A), note it down and compare with test and adjustment values.
In right-hand drive vehicles, the sign for the test and adjustment values must be changed.
Remove angle measuring device (A) with adapter (C) from wiper arm (1).
Carefully place wiper arm (1) onto windshield.

Fig 2: Identifying Wiper Arm - Shown On Model 210, Wiper System In Park Position
