Headlamp range adjustment (LWR) arrangement of components - GF82.10-P-0001-01A

Model 208 with Code (612b) Xenon headlamp unit

IMPORTANT The transmission relay modules (A51 and A52) can vary in appearance depending on the date of vehicle production and sensor manufacturer.

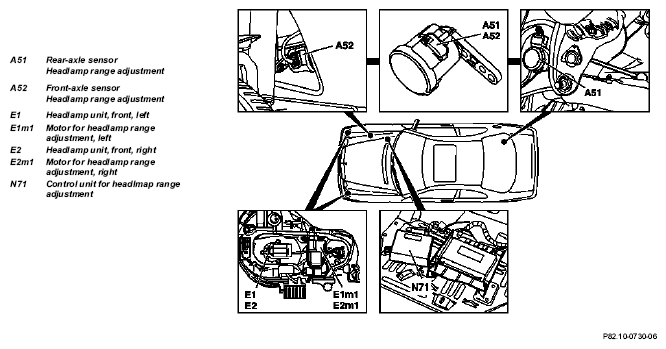

Fig 1: Identifying Headlamp Range Adjustment (LWR) Arrangement Of Components
G04729574
